LTC7510

Features: PMBusTM Serial Interface for Programming and Telemetry Digital PID Control Loop Output Voltage Range: 0.7V to VCC 0.9V Optional Resistor-Based PMBus Address, Output Voltage, Frequency and Current Limit Set 150kHz to 2MHz Switching Frequency DCR Current Sense with Temperature Compensati...

product image

LTC7510 Picture
See larger image
SeekIC No. : 004402711 Detail

LTC7510: Features: PMBusTM Serial Interface for Programming and Telemetry Digital PID Control Loop Output Voltage Range: 0.7V to VCC 0.9V Optional Resistor-Based PMBus Address, Output Voltage, Frequency an...

LTC7510 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC7510
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

PMBusTM Serial Interface for Programming and Telemetry
Digital PID Control Loop
Output Voltage Range: 0.7V to VCC 0.9V
Optional Resistor-Based PMBus Address, Output Voltage, Frequency and Current Limit Set
150kHz to 2MHz Switching Frequency
DCR Current Sense with Temperature Compensation
Adjustable Active Voltage Positioning (AVP) Control
On-Chip Non-Volatile Memory (NVM) for Confi guration Storage
Soft-Start Into Pre-Biased Load
Current Sharing
32-Lead (5mm * 5mm) QFN Package


Application

Digital Power System Management
Intelligent Point-of-Load (POL) Power Regulation


Pinout

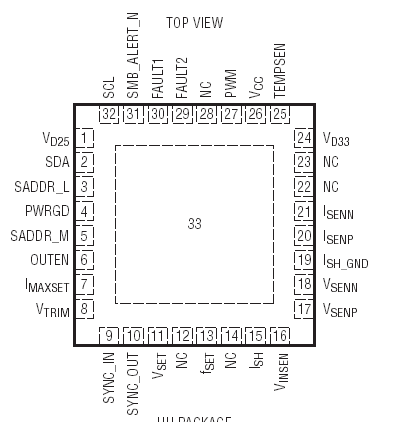

Connection Diagram


Specifications

Supply Voltage (VCC) ................................. 0.3V to 6V
VSENP, VSENN ............................................ 0.3V to 3V
ISENP, ISENN ............................................0.3V to VCC
OUTEN, SYNC_IN, SYNC_OUT, SMBALERT_N,
PWRGD, PWM, SDA, SCL, FAULT1,
FAULT2, SADDR_M ...................................... 0.3V to 6V
All Other Pins ........................................  0.3V to 4.25V
Differential Voltage
VSEN_DIFF (VSENP VSENN) .................... 0.3V to 2.5V
Operating Temperature Range (Note 2).... 40 to 85
Junction Temperature ........................................... 125
Storage Temperature Range ................... 65 to 150
Write Temperature ....................................... 0 to 85
Read Temperature .................................... 40 to 85


Description

The LTC®7510 is a digital DC/DC controller with onboard non-volatile memory and PMBus interface for real time reporting and control of point-of-load (POL) power management. Power supply sequencing, margining, turnon/- off and fault detection are easily programmed via the PMBus interface. The LTC7510 uses a digital control loop which eliminates external compensation components. The controller supports current sharing of multiple ICs; up to four controllers can be synchronized for multiphase operation.

The LTC7510 provides superior accuracy through internal calibration to correct current sense error sources upon start-up and programmable temperature compensation provides accurate current sensing over temperature.

The LTC7510 is available in a 32-lead (5mm × 5mm) QFN package.
