Features:

Low Power, IS = 60µA(Max)
Robust, Latch Up Proof
Instrumentation Front End with 120dB CMRR
Precise, Charge-Balanced Switching
Operates from 5V to 18V
Internal or External Clock
Operates up to 5MHz Clock Rate
Two Independent Sections with One Clock
Tiny SSOP-16 Package


Application

Ultra Precision Voltage Inverters, Multipliers and Dividers
VF and FV Converters
Sample-and-Hold
Current Sources
Precision Instrumentation Amplifiers


Pinout

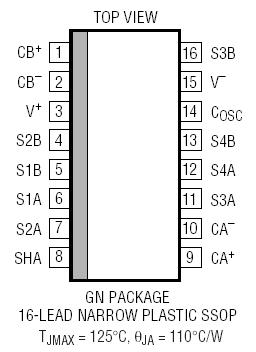

Connection Diagram


Specifications

Supply Voltage ........................................................ 18V
Input Voltage at Any Pin ........0.3V VIN V+ + 0.3V
Operating Temperature Range
(Note 2) ............................................ 40°C to 125°C
Specified Temperature Range
(Note 2) .............................................40°C to 125°C
Storage Temperature Range ............ 65°C to 150°C
Lead Temperature (Soldering, 10 sec)................ 300°C


Description

The LTC®6943 is a monolithic, charge-balanced, dual switched capacitor instrumentation building block. A pair of switches alternately connects an external capacitor to an input voltage and then connects the charged capacitor across an output port. The internal switches have a break-before-make action. An internal clock is provided and its frequency can be adjusted with an external capacitor. The LTC6943 can also be driven with an external CMOS clock.

The LTC6943, when used with low clock frequencies, provides ultra precision DC functions without requiring precise external components. Such functions are differential voltage to single-ended conversion, voltage inversion, voltage multiplication and division by 2, 3, 4, 5, etc.

The LTC6943 is manufactured using Linear Technology's enhanced LTCMOSTM silicon gate process, and it is functionally compatible with the LTC1043.
