LTC3736-2

Features: No Current Sense Resistors Required Out-of-Phase Controllers Reduce Required Input Capacitance Tracking Function Wide VIN Range: 2.75V to 9.8V 0.6V ±1% Voltage Reference High Current Limit Constant Frequency Current Mode Operation Low Dropout Operation: 100% Duty Cycle True PLL for Freq...

product image

LTC3736-2 Picture
See larger image
SeekIC No. : 004402335 Detail

LTC3736-2: Features: No Current Sense Resistors Required Out-of-Phase Controllers Reduce Required Input Capacitance Tracking Function Wide VIN Range: 2.75V to 9.8V 0.6V ±1% Voltage Reference High Current Limi...

LTC3736-2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC3736-2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

No Current Sense Resistors Required
Out-of-Phase Controllers Reduce Required Input Capacitance
Tracking Function
Wide VIN Range: 2.75V to 9.8V
0.6V ±1% Voltage Reference
High Current Limit
Constant Frequency Current Mode Operation
Low Dropout Operation: 100% Duty Cycle
True PLL for Frequency Locking or Adjustment
Selectable Pulse Skipping/Forced Continuous Operation
Auxiliary Winding Regulation
Internal Soft-Start Circuitry
Power Good Output Voltage Monitor
Output Overvoltage Protection
Micropower Shutdown: IQ = 9µA
Tiny Low Profile (4mm * 4mm) QFN Package


Application

One or Two Lithium-Ion Powered Devices
Notebook and Palmtop Computers, PDAs
Portable Instruments
Distributed DC Power Systems


Pinout

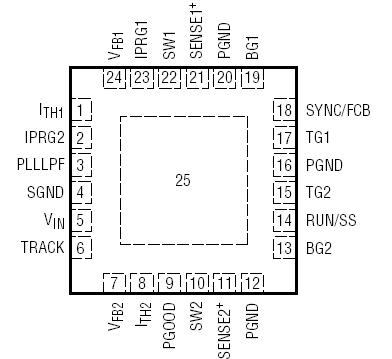

Connection Diagram


Specifications

Input Supply Voltage (VIN) ....................... 0.3V to 10V
PLLLPF, RUN/SS, SYNC/FCB,
TRACK, SENSE1+, SENSE2+,
IPRG1, IPRG2 Voltages ................. 0.3V to (VIN + 0.3V)
VFB1, VFB2, ITH1, ITH2 Voltages .............  0.3V to 2.4V
SW1, SW2 Voltages ............ 2V to VIN + 1V or 10V Max
PGOOD .....................................................   0.3V to 10V
TG1, TG2, BG1, BG2 Peak Output Current (<10µs) .....  1A
Operating Temperature Range (Note 2) 40°C to 85°C
Storage Temperature Range .............. 65°C to 125°C
Junction Temperature (Note 3) ............................ 125°C


Description

The LTC®3736-2 is a 2-phase dual synchronous step-down switching regulator controller with tracking that drives external complementary power MOSFETs using few external components. The constant frequency current mode architecture with MOSFET VDS sensing eliminates the need for sense resistors and improves efficiency. Power loss and noise due to the ESR of the input capacitance are minimized by operating the two controllers out of phase.

Pulse skipping operation of LTC3736-2 provides high efficiency at light loads. 100% duty cycle capability provides low dropout operation, extending operating time in battery-powered systems.

The switching frequency can be programmed up to 750kHz, allowing the use of small surface mount inductors and capacitors. For noise sensitive applications, the LTC3736-2 switching frequency can be externally synchronized from 250kHz to 850kHz. An internal soft-start, which can be lengthened externally, smoothly ramps the output voltage during start-up.

The LTC3736-2 is available in the tiny thermally enhanced (4mm × 4mm) QFN package.
