LTC3728

` Dual, 180° Phased Controllers Reduce Required Input Capacitance and Power Supply Induced Noise
` OPTI-LOOP^® Compensation Minimizes C_OUT
` ±1% Output Voltage Accuracy
` Power Good Output Voltage Indicator
` Phase-Lockable Fixed Frequency 250kHz to 550kHz

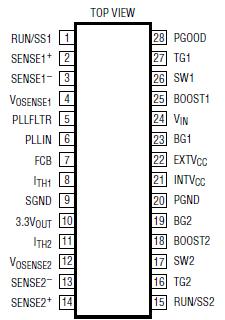

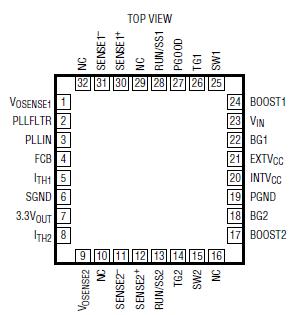

` Available in 5mm ´ 5mm QFN and 28-Pin SSOP Packages
` Dual N-Channel MOSFET Synchronous Drive
` Wide V_IN Range: 3.5V to 36V Operation
` Very Low Dropout Operation: 99% Duty Cycle
` Adjustable Soft-Start Current Ramping
` Foldback Output Current Limiting
` Latched Short-Circuit Shutdown with Defeat Option
` Output Overvoltage Protection
` Remote Output Voltage Sense
` Low Shutdown I<sub>Q</sub>: 20A
` 5V and 3.3V Regulators
` 3 Selectable Operating Modes: Constant Frequency, Burst Mode^® Operation and PWM

· Notebook and Palmtop Computers
· Telecom Systems
· Portable Instruments
· Battery-Operated Digital Devices
· DC Power Distribution Systems

Input Supply Voltage (V_IN)...........................36V to 0.3V
Top Side Driver Voltages
(BOOST1, BOOST2) ......................................42V to 0.3V
Switch Voltage (SW1, SW2) ............................36V to 5V
INTV_CC, EXTV_CC, RUN/SS1, RUN/SS2, (BOOST1-SW1),
(BOOST2-SW2), PGOOD .................................7V to 0.3V
SENSE1+, SENSE2 +, SENSE1,
SENSE2 Voltages ........................ (1.1)INTV_CC to 0.3V
PLLIN, PLLFLTR, FCB, Voltage ................ INTV_CC to 0.3V
I_TH1, I_TH2, V_OSENSE1, V_OSENSE2 Voltages ....2.7V to 0.3V
Peak Output Current <10s (TG1, TG2, BG1, BG2) ...... 3A
INTV_CC Peak Output Current .................................. 50mA
Operating Temperature Range (Note 7)..40°C to 85°C
Junction Temperature (Note 2) ............................. 125°C
Storage Temperature Range .............. 65°C to 150°C
Lead Temperature (Soldering, 10 sec)
(G Package Only) ................................................. 300°C

The LTC^®3728 is a dual high performance step-down switching regulator controller that drives all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows phase-lockable frequency of up to 550kHz. Power loss and noise due to the ESR of the input capacitors are minimized by operating the two controller output stages out of phase.

OPTI-LOOP compensation of LTC3728 allows the transient response to be optimized over a wide range of output capacitance and ESR values. The precision 0.8V reference and power good output indicator are compatible with future microprocessor generations, and a wide 3.5V to 30V (36V maximum) input supply range encompasses all battery chemistries.

A RUN/SS pin for each controller of LTC3728 provides both soft-start and optional timed, short-circuit shutdown. Current foldback limits MOSFET dissipation during short-circuit conditions when overcurrent latchoff is disabled. Output overvoltage protection circuitry latches on the bottom MOSFET until V_OUT returns to normal. The FCB mode pin can select among Burst Mode, constant frequency mode and continuous inductor current mode or regulate a secondary winding. The LTC3728 includes a power good output pin that indicates when both outputs are within 7.5% of their designed set point.
