LTC3407-2

Features: ` High Efficiency: Up to 95%` Very Low Quiescent Current: Only 40A` 2.25MHz Constant Frequency Operation` High Switch Current: 1.2A on Each Channel` No Schottky Diodes Required` Low RDS(ON) Internal Switches: 0.35` Current Mode Operation for Excellent Line and Load Transient Response` Sh...

product image

LTC3407-2 Picture
See larger image
SeekIC No. : 004402218 Detail

LTC3407-2: Features: ` High Efficiency: Up to 95%` Very Low Quiescent Current: Only 40A` 2.25MHz Constant Frequency Operation` High Switch Current: 1.2A on Each Channel` No Schottky Diodes Required` Low RDS(ON...

LTC3407-2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC3407-2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High Efficiency: Up to 95%
` Very Low Quiescent Current: Only 40A
` 2.25MHz Constant Frequency Operation
` High Switch Current: 1.2A on Each Channel
` No Schottky Diodes Required
` Low RDS(ON) Internal Switches: 0.35
` Current Mode Operation for Excellent Line and Load Transient Response
` Short-Circuit Protected
` Low Dropout Operation: 100% Duty Cycle
` Ultralow Shutdown Current: IQ < 1A
` Output Voltages from 5V down to 0.6V
` Power-On Reset Output
` Externally Synchronizable Oscillator
` Small Thermally Enhanced MSOP and 3mm * 3mm DFN Packages


Application

· PDAs/Palmtop PCs
· Digital Cameras
· Cellular Phones
· Portable Media Players
· PC Cards
· Wireless and DSL Modems


Pinout

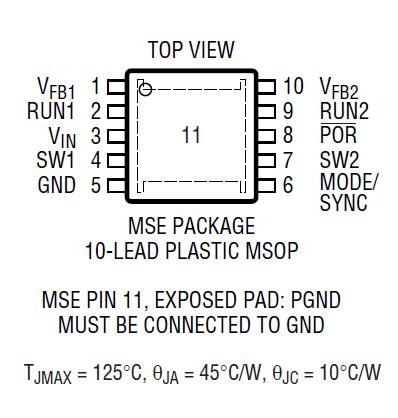

Connection Diagram


Specifications

VIN Voltages............................................... 0.3V to 6V
VFB1, VFB2, RUN1, RUN2
    Voltages .....................................0.3V to VIN + 0.3V
MODE/SYNC Voltage ...................... 0.3V to VIN + 0.3V
SW1, SW2 Voltage ......................... 0.3V to VIN + 0.3V
POR Voltage ................................................0.3V to 6V
Ambient Operating Temperature
    Range (Note 2) ................................... 40 to 85
Junction Temperature (Note 5) ............................. 125
Storage Temperature Range ................. 65 to 125
Lead Temperature (Soldering, 10 sec)
    LTC3407-2EMSE only ......................................  300
Reflow Peak Body Temperature ............................ 260


Description

The LTC®3407-2 is a dual, constant frequency, synchronous step down DC/DC converter. Intended for low power applications, it operates from 2.5V to 5.5V input voltage range and has a constant 2.25MHz switching frequency, allowing the use of tiny, low cost capacitors and inductors with a profile 1.2mm. Each output voltage is adjustable from 0.6V to 5V. Internal synchronous 0.35, 1.2A power switches provide high efficiency without the need for external Schottky diodes.

A user selectable mode input of LTC3407-2 is provided to allow the user to trade-off noise ripple for low power efficiency. Burst Mode® operation provides high efficiency at light loads, while Pulse Skip Mode provides low noise ripple at light loads.

To further maximize battery life, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle), and both channels draw a total quiescent current of only 40A. In shutdown, the device draws <1A.
