SeekIC No. : 003563849 Detail

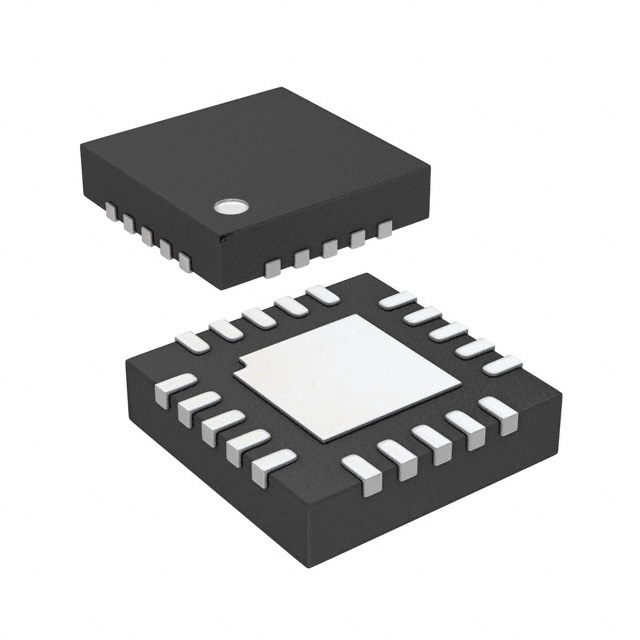

LTC3219EUD#PBF: IC LED DRIVR QVGA DISPLAY 20-QFN

LTC3219EUD#PBF Data Sheet

US $ 1.27~2.17 / Piece | Get Latest Price

Part Number:: LTC3219EUD#PBF
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100

Unit Price
$2.17
$1.54
$1.27

Processing time
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LTC3025 evaluate
Features: `Wide Input Voltage Range: 0.9V to 5.5V`Stable with Ceramic Capacitors`Very Low Dropout:...
LTC3025EDC#TR evaluate
US $.88 - .88 / Piece

IC REG LDO ADJ .3A 6DFN
LTC3025EDC#TRM evaluate
US $.88 - .88 / Piece

IC REG LDO ADJ .3A 6DFN

Product Details

Quick Details

Series:	-	Manufacturer:	Linear Technology
Constant Current:	-	Type:	-
Constant Voltage:	-	Topology:	Open Drain, Step-Up (Boost), Switched Capacitor (Charge Pump)
Number of Outputs:	9	Efficiency:	-
Internal Driver:	Yes	Package / Case :	BGA-56
Current - Output / Channel:	-	Type - Primary:	Backlight
Type - Secondary:	LED Blinker	Frequency:	650kHz ~ 1.05MHz
Internal Switch(s):	-	Voltage - Supply:	2.9 V ~ 5.5 V
Voltage - Output:	-	Mounting Type:	Surface Mount
Package / Case:	20-WFQFN Exposed Pad	Supplier Device Package:	20-QFN Exposed Pad (3x3)
Packaging:	Tube

Description

Series: -
Constant Current: -
Type: -
Constant Voltage: -
Efficiency: -
Current - Output / Channel: -
Internal Switch(s): -
Voltage - Output: -
Mounting Type: Surface Mount
Internal Driver: Yes
Operating Temperature: -40°C ~ 85°C
Type - Primary: Backlight
Packaging: Tube
Number of Outputs: 9
Supplier Device Package: 20-QFN Exposed Pad (3x3)
Manufacturer: Linear Technology
Frequency: 650kHz ~ 1.05MHz
Topology: Open Drain, Step-Up (Boost), Switched Capacitor (Charge Pump)
Type - Secondary: LED Blinker
Voltage - Supply: 2.9 V ~ 5.5 V
Package / Case: 20-WFQFN Exposed Pad

Parameters:

Technical/Catalog Information	LTC3219EUD#PBF
Vendor	Linear Technology
Category	Integrated Circuits (ICs)
Package / Case	20-QFN
Packaging	Tube
Current - Output / Channel	28mA
Number of Outputs	9
Type	QVGA Display (I²C Interface)
Voltage - Supply	2.9 V ~ 5.5 V
Voltage - Output	-
Topology	Switched Capacitor (Charge Pump)
Frequency	850kHz
Operating Temperature	-40°C ~ 85°C
Efficiency	91%
Drawing Number	161; 05-08-1720; UD; 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LTC3219EUD#PBF LTC3219EUD#PBF
