LTC2704

Features: ` Six Programmable Output Ranges: Unipolar: 0V to 5V, 0V to 10V Bipolar: ±5V, ±10V, ±2.5V, 2.5V to 7.5V` Serial Readback of All On-Chip Registers` 1LSB INL and DNL Over the Industrial Temperature Range (LTC2704-14/LTC2704-12)` Force/Sense Outputs Enable Remote Sensing` Glitch Impulse: &l...

product image

LTC2704 Picture
See larger image
SeekIC No. : 004402128 Detail

LTC2704: Features: ` Six Programmable Output Ranges: Unipolar: 0V to 5V, 0V to 10V Bipolar: ±5V, ±10V, ±2.5V, 2.5V to 7.5V` Serial Readback of All On-Chip Registers` 1LSB INL and DNL Over the Industrial Temp...

LTC2704 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC2704
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Six Programmable Output Ranges:
    Unipolar: 0V to 5V, 0V to 10V
    Bipolar: ±5V, ±10V, ±2.5V, 2.5V to 7.5V
` Serial Readback of All On-Chip Registers
` 1LSB INL and DNL Over the Industrial
    Temperature Range (LTC2704-14/LTC2704-12)
` Force/Sense Outputs Enable Remote Sensing
` Glitch Impulse: < 2nV-sec
` Outputs Drive ±5mA
` Pin Compatible 12-, 14- and 16-Bit Parts
` Power-On and Clear to Zero Volts
` 44-Lead SSOP Package


Application

· Process Control and Industrial Automation
· Direct Digital Waveform Generation
· Software Controlled Gain Adjustment
· Automated Test Equipment


Pinout

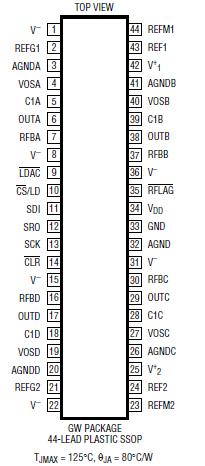

Connection Diagram


Specifications

Total Supply Voltage V+
1, V+ 2 to V ......................0.3V to 36V
V+ 1, V+ 2, REF1, REF2, REFM1, REFM2,
OUTx, RFBx, VOSx to GND, AGND,
AGNDx, C1x, REFG1, REFG2  ................... 18V
GND, AGND, AGNDx, C1x, REFG1, REFG2 to V+ 1,
V+ 2, V, REF1, REF2, REFM1, REFM2, OUTx,
RFBx, VOSx  ............................ 18V
OUTA, RFBA, VOSA, OUTB, RFBB, VOSB, REF1,
REFM1 to GND, AGND  ...........V 0.3V to V+ 1 + 0.3V
OUTC, RFBC, VOSC, OUTD, RFBD, VOSD, REF2, REFM2
to GND, AGND    .............. V 0.3V to V+ 2 + 0.3V
VDD, Digital Inputs/Outputs to GND  ...........0.3V to 7V
Digital Inputs/Outputs to VDD .................. 0.3V
GND, AGNDx, REFG1, REFG2 to AGND   ............. ±0.3V
C1x to AGNDx   ......................... ±0.3V
V to Any Pin   .......................... 0.3V
Maximum Junction Temperature  ................150°C
Operating Temperature Range
LTC2704C........................ 0°C to 70°C
LTC2704I ...................... 40°C to 85°C
Storage Temperature Range  ......... .. 65°C to 150°C
Lead Temperature (Soldering, 10 sec) .............300°C


Description

The LTC®2704-16/LTC2704-14/LTC2704-12 are serial input,12-, 14- or 16-bit, voltage output SoftSpan™ DACs that operate from 3V to 5V logic and ±5V to ±15V analog supplies. SoftSpan offers six output spans-two unipolar and four bipolar-fully programmable through the 3-wire SPI serial interface. INL is accurate to 1LSB (2LSB for the LTC2704-16). DNL is accurate to 1LSB for all versions.

Readback commands allow verification of any on-chip register in just one 24- or 32- bit instruction cycle. All other commands produce a "rolling readback" response from the LTC2704, dramatically reducing the needed number of instruction cycles.

A Sleep command allows any combination of DACs to be powered down. There is also a reset flag and an offset adjustment pin for each channel.
