LTC2291

Features: · Integrated Dual 12-Bit ADCs· Sample Rate: 65Msps/40Msps/25Msps· Single 3V Supply (2.7V to 3.4V)· Low Power: 400mW/235mW/150mW· 71dB SNR up to 70MHz Input· 85dB SFDR up to 70MHz Input· 110dB Channel Isolation at 100MHz· Multiplexed or Separate Data Bus· Flexible Input: 1V P-P to 2V P-P ...

product image

LTC2291 Picture
See larger image
SeekIC No. : 004402045 Detail

LTC2291: Features: · Integrated Dual 12-Bit ADCs· Sample Rate: 65Msps/40Msps/25Msps· Single 3V Supply (2.7V to 3.4V)· Low Power: 400mW/235mW/150mW· 71dB SNR up to 70MHz Input· 85dB SFDR up to 70MHz Input· 11...

LTC2291 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC2291
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Integrated Dual 12-Bit ADCs
· Sample Rate: 65Msps/40Msps/25Msps
· Single 3V Supply (2.7V to 3.4V)
· Low Power: 400mW/235mW/150mW
· 71dB SNR up to 70MHz Input
· 85dB SFDR up to 70MHz Input
· 110dB Channel Isolation at 100MHz
· Multiplexed or Separate Data Bus
· Flexible Input: 1V P-P to 2V P-P Range
· 575MHz Full Power Bandwidth S/H
· Clock Duty Cycle Stabilizer
· Shutdown and Nap Modes
· Pin Compatible Family
80Msps: LTC2294 (12-Bit), LTC2299 (14-Bit)
65Msps: LTC2293 (12-Bit), LTC2298 (14-Bit)
40Msps: LTC2292 (12-Bit), LTC2297 (14-Bit)
25Msps: LTC2291 (12-Bit), LTC2296 (14-Bit)
10Msps: LTC2290 (12-Bit), LTC2295 (14-Bit)
· 64-Pin (9mm × 9mm) QFN Package


Application

· Wireless and Wired Broadband Communication
· Imaging Systems
· Spectral Analysis
· Portable Instrumentation

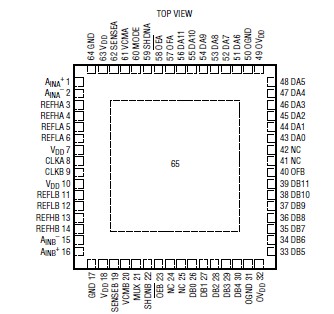

Pinout

Connection Diagram


Specifications

OVDD = VDD (Notes 1, 2)
Supply Voltage (VDD) ................................................. 4V
Digital Output Ground Voltage (OGND) ....... 0.3V to 1V
Analog Input Voltage (Note 3) ..... 0.3V to (VDD + 0.3V)
Digital Input Voltage .................... 0.3V to (VDD + 0.3V)
Digital Output Voltage ............... 0.3V to (OVDD + 0.3V)
Power Dissipation ............................................ 1500mW
Operating Temperature Range
LTC2293C, LTC2292C, LTC2291C........... 0°C to 70°C
LTC2293I, LTC2292I, LTC2291I ..........40°C to 85°C
Storage Temperature Range .............65°C to 125°C
Lead Temperature (Soldering, 10 sec)................ 300°C


Description

The LTC®2293/LTC2292/LTC2291 are 12-bit 65Msps/ 40Msps/25Msps, low power dual 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2293/LTC2292/LTC2291 are perfect for demanding imaging and communications applications with AC performance that includes 71dB SNR and 85dB SFDR for signals well beyond the Nyquist frequency.

DC specs include ±0.3LSB INL (typ), ±0.15LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.25LSBRMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.3V logic. An optional multiplexer allows both channels to share a digital output bus.

A single-ended CLK input of LTC2293/LTC2292/LTC2291  controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
