LTC2282

Features: . Integrated Dual 12-Bit ADCs. Sample Rate: 105Msps. Single 3V Supply (2.85V to 3.4V). Low Power: 540mW. 70.1dB SNR, 88dB SFDR. 110dB Channel Isolation at 100MHz. Flexible Input: 1V P-P to 2V P-P Range. 575MHz Full Power Bandwidth S/H. Clock Duty Cycle Stabilizer. Shutdown and Nap Modes....

product image

LTC2282 Picture
See larger image
SeekIC No. : 004402038 Detail

LTC2282: Features: . Integrated Dual 12-Bit ADCs. Sample Rate: 105Msps. Single 3V Supply (2.85V to 3.4V). Low Power: 540mW. 70.1dB SNR, 88dB SFDR. 110dB Channel Isolation at 100MHz. Flexible Input: 1V P-P to...

LTC2282 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC2282
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

. Integrated Dual 12-Bit ADCs
. Sample Rate: 105Msps
. Single 3V Supply (2.85V to 3.4V)
. Low Power: 540mW
. 70.1dB SNR, 88dB SFDR
. 110dB Channel Isolation at 100MHz
. Flexible Input: 1V P-P to 2V P-P Range
. 575MHz Full Power Bandwidth S/H
. Clock Duty Cycle Stabilizer
. Shutdown and Nap Modes
. Pin Compatible Family
105Msps: LTC2282 (12-Bit), LTC2284 (14-Bit)
80Msps: LTC2294 (12-Bit), LTC2299 (14-Bit)
65Msps: LTC2293 (12-Bit), LTC2298 (14-Bit)
40Msps: LTC2292 (12-Bit), LTC2297 (14-Bit)
25Msps: LTC2291 (12-Bit), LTC2296 (14-Bit)
10Msps: LTC2290 (12-Bit), LTC2295 (14-Bit)
. 64-Pin (9mm × 9mm) QFN Package


Application

. Wireless and Wired Broadband Communication
. Imaging Systems
. Spectral Analysis
. Portable Instrumentation.


Pinout

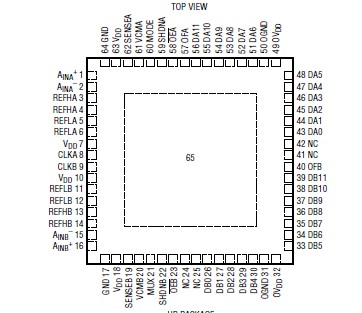

Connection Diagram


Specifications

OVDD = VDD (Notes 1, 2)
Supply Voltage (VDD) ................................................. 4V
Digital Output Ground Voltage (OGND) ....... 0.3V to 1V
Analog Input Voltage (Note 3) .... 0.3V to (VDD + 0.3V)
Digital Input Voltage ................... 0.3V to (VDD + 0.3V)
Digital Output Voltage .............. 0.3V to (OVDD + 0.3V)
Power Dissipation ........................................... 1500mW
Operating Temperature Range
LTC2282C ............................................... 0°C to 70°C
LTC2282I.............................................40°C to 85°C
Storage Temperature Range ............65°C to 125°C
Lead Temperature (Soldering, 10 sec).................. 300°C


Description

The LTC®2282 is a 12-bit 105Msps, low power dual 3V A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2282 is perfect for demanding imaging and communications applications with AC performance that includes 70.1dB SNR and 85dB SFDR for signals at the Nyquist frequency.

DC specs include ±0.4LSB INL (typ), ±0.2LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.3LSBRMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic.

A single-ended CLK input of LTC2284 controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
