Features:

·Sample Rate: 135Msps
·61dB SNR up to 200MHz Input
·75dB SFDR up to 400MHz Input
·775MHz Full Power Bandwidth S/H
·Single 3.3V Supply
·Low Power Dissipation: 630mW
·CMOS Outputs
·Selectable Input Ranges: ±0.5V or ±1V
·No Missing Codes
·Optional Clock Duty Cycle Stabilizer
·Shutdown and Nap Modes
·Data Ready Output Clock
· Pin Compatible Family
135Msps: LTC2224 (12-Bit), LTC2234 (10-Bit)
105Msps: LTC2222 (12-Bit), LTC2232 (10-Bit)
80Msps: LTC2223 (12-Bit), LTC2233 (10-Bit)
·48-Pin 7mm × 7mm QFN Package


Application

· Wireless and Wired Broadband Communication
· Cable Head-End Systems
· Power Amplifier Linearization
·Communications Test Equipment


Pinout

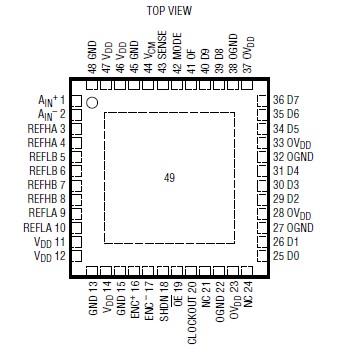

Connection Diagram


Specifications

Supply Voltage (VDD) ................................................. 4V
Digital Output Ground Voltage (OGND) ....... 0.3V to 1V
Analog Input Voltage (Note 3) ..... 0.3V to (VDD + 0.3V)
Digital Input Voltage .................... 0.3V to (VDD + 0.3V)
Digital Output Voltage ............... 0.3V to (OVDD + 0.3V)
Power Dissipation ............................................ 1500mW
Operating Temperature Range
LTC2234C ............................................... 0°C to 70°C
LTC2234I.............................................40°C to 85°C
Storage Temperature Range ............65°C to 125°C


Description

The LTC®2234 is a 135Msps, sampling 10-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2234 is perfect for demanding communications applications with AC performance that includes 60.5dB SNR and 75dB spurious free dynamic range for signals up to 400MHz. Ultralow jitter of 0.15psRMS allows undersampling of IF frequencies with excellent noise performance.

DC specs include ±0.2LSB INL (typ), ±0.1LSB DNL (typ)and ±0.8LSB INL, ±0.6LSB DNL over temperature. The  transition noise is a low 0.12LSBRMS.

A separate output power supply of LTC2234 allows the CMOS output swing to range from 0.5V to 3.3V.

The ENC+ and ENC inputs may be driven differentially or single ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
