LTC2208-14

Features: · Sample Rate: 130Msps· 77.1dBFS Noise Floor· 98dB SFDR· SFDR >81dB at 250MHz (1.5VP-P Input Range)· PGA Front End (2.25VP-P or 1.5VP-P Input Range)· 700MHz Full Power Bandwidth S/H· Optional Internal Dither· Optional Data Output Randomizer· LVDS or CMOS Outputs· Single 3.3V...

product image

LTC2208-14 Picture
See larger image
SeekIC No. : 004402002 Detail

LTC2208-14: Features: · Sample Rate: 130Msps· 77.1dBFS Noise Floor· 98dB SFDR· SFDR >81dB at 250MHz (1.5VP-P Input Range)· PGA Front End (2.25VP-P or 1.5VP-P Input Range)· 700MHz Full Power Bandwidth S...

LTC2208-14 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC2208-14
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Sample Rate: 130Msps
· 77.1dBFS Noise Floor
· 98dB SFDR
· SFDR >81dB at 250MHz (1.5VP-P Input Range)
· PGA Front End (2.25VP-P or 1.5VP-P Input Range)
· 700MHz Full Power Bandwidth S/H
· Optional Internal Dither
· Optional Data Output Randomizer
· LVDS or CMOS Outputs
· Single 3.3V Supply
· Power Dissipation: 1.32W
· Clock Duty Cycle Stabilizer
· Pin Compatible 16-Bit Version
  130Msps: LTC2208 (16-Bit)
· 64-Pin (9mm × 9mm) QFN Package


Application

· Telecommunications
· Receivers
· Cellular Base Stations
· Spectrum Analysis
· Imaging Systems
· ATE


Pinout

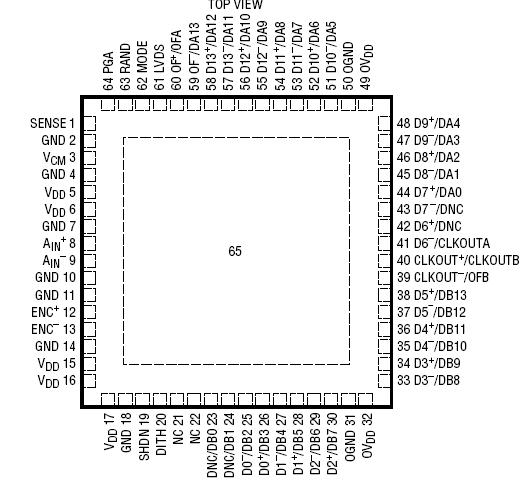

Connection Diagram


Specifications

Supply Voltage (VDD) .....................................0.3V to 4V
Digital Output Ground Voltage (OGND) ..........0.3V to 1V
Analog Input Voltage (Note 3) ...... 0.3V to (VDD + 0.3V)
Digital Input Voltage ..................... 0.3V to (VDD + 0.3V)
Digital Output Voltage .................0.3V to (OVDD + 0.3V)
Power Dissipation ............................................. 2000mW
Operating Temperature Range
LTC2208C-14 .............................................. 0°C to 70°C
LTC2208I-14 ............................................40°C to 85°C
Storage Temperature Range ..................65°C to 150°C
Digital Output Supply Voltage (OVDD) ...........0.3V to 4V


Description

The LTC®2208-14 is a 130Msps, sampling 14-bit A/D converter designed for digitizing high frequency, wide dynamic range signals with input frequencies up to 700MHz. The input range of the ADC can be optimized with the PGA front end.

The LTC2208-14 is perfect for demanding communications applications, with AC performance that includes 77.1dBFS Noise Floor and 98dB spurious free dynamic range (SFDR). Ultralow jitter of 70fsRMS allows undersampling of high input frequencies with excellent noise performance. Maximum DC specs include ±1.5LSB INL, ±0.5LSB DNL (no missing codes).

The digital output of LTC2208-14 can be either differential LVDS or single-ended CMOS. There are two format options for the CMOS outputs: a single bus running at the full data rate or demultiplexed buses running at half data rate. A separate output power supply allows the CMOS output swing to range from 0.5V to 3.6V.
