LTC2205

Features: ·Sample Rate: 65Msps/40Msps·79dB SNR and 100dB SFDR (2.25V Range)·SFDR >83dB at 170MHz (1.5V P-P Input Range)·PGA Front End (2.25V P-P or 1.5V P-P Input Range)·700MHz Full Power Bandwidth S/H·Optional Internal Dither·Optional Data Output Randomizer·Single 3.3V Supply·Power Dissipation...

product image

LTC2205 Picture
See larger image
SeekIC No. : 004401995 Detail

LTC2205: Features: ·Sample Rate: 65Msps/40Msps·79dB SNR and 100dB SFDR (2.25V Range)·SFDR >83dB at 170MHz (1.5V P-P Input Range)·PGA Front End (2.25V P-P or 1.5V P-P Input Range)·700MHz Full Power Bandwid...

LTC2205 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC2205
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Sample Rate: 65Msps/40Msps
·79dB SNR and 100dB SFDR (2.25V Range)
·SFDR >83dB at 170MHz (1.5V P-P Input Range)
·PGA Front End (2.25V P-P or 1.5V P-P Input Range)
·700MHz Full Power Bandwidth S/H
·Optional Internal Dither
·Optional Data Output Randomizer
·Single 3.3V Supply
·Power Dissipation: 530mW/470mW
·Optional Clock Duty Cycle Stabilizer
·Out-of-Range Indicator
·Pin Compatible Family
105Msps: LTC2207 (16-Bit)
80Msps: LTC2206 (16-Bit)
65Msps: LTC2205 (16-Bit),
40Msps: LTC2204 (16-Bit)
·48-Pin QFN Package


Application

· Telecommunications
·Receivers
·Cellular Base Stations
· Spectrum Analysis
·Imaging Systems
· ATE


Pinout

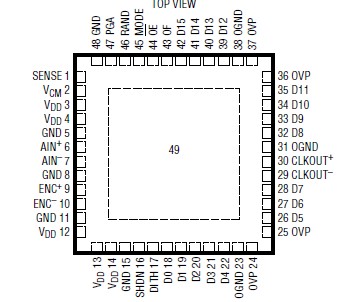

Connection Diagram


Specifications

Supply Voltage (VDD) ................................... 0.3V to 4V
Digital Output Ground Voltage (OGND) ........ 0.3V to 1V
Analog Input Voltage (Note 3) ......0.3V to (VDD + 0.3V)
Digital Input Voltage .....................0.3V to (VDD + 0.3V)
Digital Output Voltage ............... 0.3V to (OVDD + 0.3V)
Power Dissipation ............................................ 2000mW
Operating Temperature Range
LTC2205C/LTC2204C ............................... 0°C to 70°C
LTC2205I/LTC2204I ............................. 40°C to 85°C
Storage Temperature Range .............. 65°C to 150°C
Digital Output Supply Voltage (OVDD) .......... 0.3V to 4V


Description

The LTC®2205/LTC2204 are sampling 16-bit A/D converters designed for digitizing high frequency, wide dynamic range signals up to input frequencies of 700MHz. The input range of the ADC can be optimized with the PGA front end.

The LTC2205/LTC2204 are perfect for demanding communications applications, with AC performance that includes 78dB SNR and 100dB spurious free dynamic range (SFDR). Ultralow jitter of 120fsRMS allows undersampling of high input frequencies with excellent noise performance. Maximum DC specs include ±4LSB INL, ±1LSB DNL (no missing codes) over temperature.

A separate output power supply of LTC2205 allows the CMOS output swing to range from 0.5V to 3.3V.

The ENC+ and ENC inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL or CMOS inputs. An optional clock duty cycle stabilizer allows high performance at full speed with a wide range of clock duty cycle.
