LTC1955

Features: · Compatible with ISO7816-3 and EMV Electrical Specifications· Power Management and Control for Two Smart Cards· Control/Status Serial Port May be Daisy-Chained for Multicard Applications· Automatic Shutdown on Electrical Faults· Buck/Boost Charge Pump Generates 5V, 3V or 1.8V Outputs (S...

product image

LTC1955 Picture
See larger image
SeekIC No. : 004401959 Detail

LTC1955: Features: · Compatible with ISO7816-3 and EMV Electrical Specifications· Power Management and Control for Two Smart Cards· Control/Status Serial Port May be Daisy-Chained for Multicard Applications·...

LTC1955 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1955
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Compatible with ISO7816-3 and EMV Electrical Specifications
· Power Management and Control for Two Smart Cards
· Control/Status Serial Port May be Daisy-Chained for Multicard Applications
· Automatic Shutdown on Electrical Faults
· Buck/Boost Charge Pump Generates 5V, 3V or 1.8V Outputs (Smart Card Classes A, B and C)*
· Independent 5V/3V/1.8V Level Control for Both Cards
· Automatic Level Translation
· Supervisory Functions Prevent Smart Card Faults
· Low Operating Current: 250mA Typical
· Ultralow Shutdown Current
· >10kV ESD on Smart Card Pins
· Small 32-Pin 5mm × 5mm QFN Package


Application

· Handheld Payment Terminals
·Pay Telephones
· ATM Machines
· POS Terminals
· Computer Keyboards
· Multiple S.A.M. Sockets


Pinout

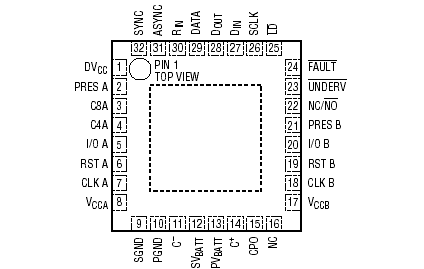

Connection Diagram


Specifications

VBATT, DVCC, CPO, FAULT,
UNDERV to GND .................................. 0.3V to 6.0V
PRES A/PRES B, DATA, RIN, SYNC, ASYNC,
LD, DIN, SCLK to GND .............0.3V to (DVCC + 0.3V)
I/O A ...................................... 0.3V to (VCCA + 0.3V)
I/O B ...................................... 0.3V to (VCCB + 0.3V)
IVCCA/IVCCB ....................................................... 80mA
VCCA/VCCB Short-Circuit Duration .................. Indefinite
Operating Ambient Temperature Range
    (Note 4) ............................................... 40 to 85
Storage Temperature Range ................... 65to 125


Description

The LTC®1955 provides all necessary supervisory and power control functions for two smart cards, two S.A.M. cards or a combination of S.A.M. and smart cards. It provides a charge pump for battery powered applications as well as all necessary level shifting circuitry.

The card voltages can be independently set to 1.8V, 3V or 5V. Both card interfaces include a card detection channel with automatic debounce circuitry. To reduce wiring costs, the LTC1955 interfaces to a microcontroller via a simple 4-wire serial interface. Multiple devices may be connected in daisy-chain fashion so that the number of wires to the card socket board is independent of the number of sockets. Status data is returned over the same interface.

Extensive security features ensure proper deactivation sequencing in the event of a supply fault or a smart card electrical fault. The smart card pins can withstand greater than 10kV ESD in-situ with no additional components. The LTC1955 is available in a small 5mm× 5mm QFN package.
