LTC1922-1

Features: · Adaptive DirectSenseTM Zero Voltage Switching· Integrated Synchronous Rectification Control for Highest Efficiency· Output Power Levels from 50W to Kilowatts· Very Low Start-Up and Quiescent Currents·Compatible with Voltage Mode and Current Mode Topologies· Programmable Slope Compensat...

product image

LTC1922-1 Picture
See larger image
SeekIC No. : 004401954 Detail

LTC1922-1: Features: · Adaptive DirectSenseTM Zero Voltage Switching· Integrated Synchronous Rectification Control for Highest Efficiency· Output Power Levels from 50W to Kilowatts· Very Low Start-Up and Quies...

LTC1922-1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1922-1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Adaptive DirectSenseTM Zero Voltage Switching
· Integrated Synchronous Rectification Control for Highest Efficiency
· Output Power Levels from 50W to Kilowatts
· Very Low Start-Up and Quiescent Currents
·Compatible with Voltage Mode and Current Mode Topologies
· Programmable Slope Compensation
· Undervoltage Lockout Circuitry with 4.2V Hysteresis and Integrated 10.3V Shunt Regulator
· Fixed Frequency Operation to 1MHz
· 50mA Outputs for Bridge Drive and Secondary Side Synchronous Rectifiers
· Soft-Start, Cycle-by-Cycle Current Limiting and Hiccup Mode Short-Circuit Protection
· 5V, 15mA Low Dropout Regulator
· 20-Pin PDIP and SSOP Packages


Application

· Telecommunications, Infrastructure Power Systems
· Distributed Power Architectures
· Server Power Supplies
· High Density Power Modules


Pinout

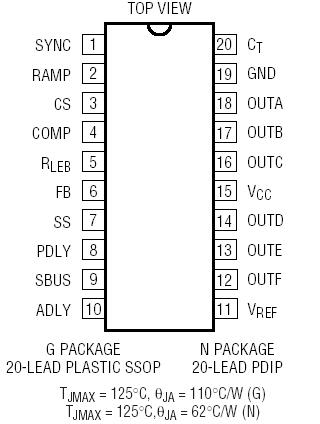

Connection Diagram


Specifications

VCC to GND
Low Impedance Source .......................... 0.3V to 10V
(Chip Self Regulates at 10.3V)
All Other Pins to GND
(Low Impedance Source) ....................... 0.3V to 5.5V
VCC (Current Fed)................................................ 25mA
VREF Output Current ............................. Self Regulated
Outputs (A, B, C, D, E, F) Current ................... ±100mA
Operating Temperature Range (Note 5)
LTC1922E ...........................................40°C to 85°C
LTC1922I............................................ 40°C to 85°C
Storage Temperature Range ............65°C to 125°C
Lead Temperature (Soldering, 10 sec)............... 300°C


Description

The LTC®1922-1 phase shift PWM controller provides all of the control and protection functions necessary to implement a high performance, zero voltage switched, phase shift, full-bridge power converter with synchronous rectification.

The part is ideal for developing isolated, low voltage, high current outputs from a high voltage input source. The LTC1922-1 combines the benefits of the fullbridge topology with fixed frequency, zero voltage switching operation (ZVS). Adaptive ZVS circuity controls the turn-on signals for each MOSFET independent of internal and external component tolerances for optimal performance.

The LTC1922-1 also provides secondary side synchronous rectifier control. The device uses peak current mode control with programmable slope comp and leading edge blanking.

The LTC1922-1 features extremely low operating and start-up currents to simplify off-line start-up and bias circuitry. The LTC1922-1 also includes a full range of protection features and is available in 20-pin through hole (N) and surface mount (G) packages.
