LTC1821

Features: 2µs Settling to 0.0015% for 10V Step1LSB Max DNL and INL Over Industrial Temperature RangeOn-Chip 4-Quadrant Resistors Allow Precise 0V to 10V, 0V to 10V or ±10V OutputsLow Glitch Impulse: 2nV•sLow Noise: 13nV/Hz36-Lead SSOP PackagePower-On ResetAsynchronous Clear PinLTC1821:...

product image

LTC1821 Picture
See larger image
SeekIC No. : 004401908 Detail

LTC1821: Features: 2µs Settling to 0.0015% for 10V Step1LSB Max DNL and INL Over Industrial Temperature RangeOn-Chip 4-Quadrant Resistors Allow Precise 0V to 10V, 0V to 10V or ±10V OutputsLow Glitch Im...

LTC1821 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1821
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

2µs Settling to 0.0015% for 10V Step
1LSB Max DNL and INL Over Industrial Temperature Range
On-Chip 4-Quadrant Resistors Allow Precise 0V to 10V, 0V to 10V or ±10V Outputs
Low Glitch Impulse: 2nV•s
Low Noise: 13nV/Hz
36-Lead SSOP Package
Power-On Reset
Asynchronous Clear Pin
LTC1821: Reset to Zero Scale
LTC1821-1: Reset to Midscale


Application

Process Control and Industrial Automation
Precision Instrumentation
Direct Digital Waveform Generation
Software-Controlled Gain Adjustment
Automatic Test Equipment


Pinout

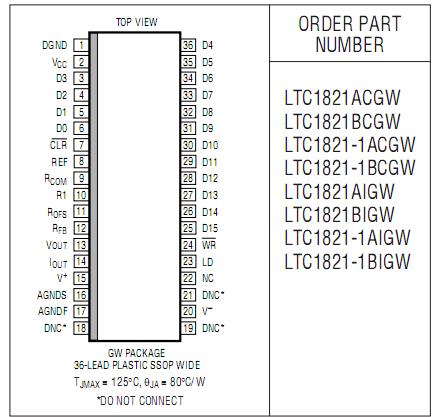

Connection Diagram


Specifications

VCC to AGNDF, AGNDS ...............................   0.3V to 7V
VCC to DGND ..............................................   0.3V to 7V
Total Supply Voltage (V+ to V) ............................... 36V
AGNDF, AGNDS to DGND .............................   VCC + 0.3V
DGND to AGNDF, AGNDS .............................   VCC + 0.3V
REF, RCOM to AGNDF, AGNDS, DGND ..................     ±15V
ROFS, RFB, R1, to AGNDF, AGNDS, DGND ............     ±15V
Digital Inputs to DGND ...............    0.3V to (VCC + 0.3V)
IOUT to AGNDF, AGNDS...............    0.3V to (VCC + 0.3V)
Maximum Junction Temperature ..........................   150°C
Operating Temperature Range
LTC1821C/LTC1821-1C..........................        0°C to 70°C
LTC1821I/LTC1821-1I .......................        40°C to 85°C
Storage Temperature Range ................  65°C to 150°C
Lead Temperature (Soldering, 10 sec) .................   300°C


Description

The LTC® 1821 is a parallel input 16-bit multiplying voltage output DAC that operates from analog supply voltages of ±5V up to ±15V. INL and DNL are accurate to 1LSB over the industrial temperature range in both unipolar 0V to 10V and bipolar ±10V modes. Precise 16-bit bipolar ±10V outputs are achieved with on-chip 4-quadrant multiplication resistors. The LTC1821 is available in a 36-lead SSOP package and is specified over the industrial temperature range.

The device includes an internal deglitcher circuit that reduces the glitch impulse to less than 2nV•s (typ). The LTC1821 settles to 1LBS in 2µs with a full-scale 10V step. The combination of fast, precise settling and ultra low glitch make the LTC1821 ideal for precision industrial control applictions.
