LTC1749

Features: ·Sample Rate: 80Msps·PGA Front End (2.25VP-P or 1.35VP-P Input Range)·71.8dB SNR and 87dB SFDR (PGA = 0)·70.2dB SNR and 87dB SFDR (PGA = 1)·500MHz Full Power Bandwidth S/H·No Missing Codes·Single 5V Supply·Power Dissipation: 1.45W·Two Pin Selectable Reference Values·Data Ready Output Clo...

product image

LTC1749 Picture
SeekIC No. : 004401877 Detail

LTC1749: Features: ·Sample Rate: 80Msps·PGA Front End (2.25VP-P or 1.35VP-P Input Range)·71.8dB SNR and 87dB SFDR (PGA = 0)·70.2dB SNR and 87dB SFDR (PGA = 1)·500MHz Full Power Bandwidth S/H·No Missing Codes...

floor Price/Ceiling Price

Part Number:
LTC1749
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Sample Rate: 80Msps
·PGA Front End (2.25VP-P or 1.35VP-P Input Range)
·71.8dB SNR and 87dB SFDR (PGA = 0)
·70.2dB SNR and 87dB SFDR (PGA = 1)
·500MHz Full Power Bandwidth S/H
·No Missing Codes
·Single 5V Supply
·Power Dissipation: 1.45W
·Two Pin Selectable Reference Values
·Data Ready Output Clock
·Pin Compatible 14-Bit 80Msps Device (LTC1750)
·48-Pin TSSOP Package



Application

·Direct IF Sampling
·Telecommunications
·Receivers
·Cellular Base Stations
·Spectrum Analysis
·Communications Test Equipment
·Undersampling



Pinout

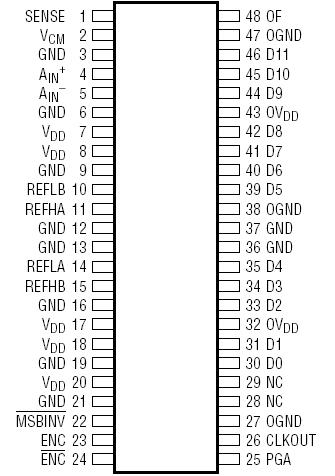

  Connection Diagram




Specifications

OVDD = VDD (Notes 1, 2)
Supply Voltage (VDD) ............................................. 5.5V
Analog Input Voltage (Note 3) ... 0.3V to (VDD + 0.3V)
Digital Input Voltage (Note 4) .... 0.3V to (VDD + 0.3V)
Digital Output Voltage ............... 0.3V to (VDD + 0.3V)
OGND Voltage.............................................0.3V to 1V
Power Dissipation .......................................... 2000mW
Operating Temperature Range
LTC1749C ............................................... 0°C to 70°C
LTC1749I........................................... 40°C to 85°C
Storage Temperature Range ............65°C to 150°C
Lead Temperature (Soldering, 10 sec)............... 300°C



Description

The LTC®1749 is an 80Msps, 12-bit A/D converter designed for digitizing wide dynamic range signals up to frequencies of 500MHz. The input range of the ADC can be optimized with the on-chip PGA sample-and-hold circuit and flexible reference circuitry.

The LTC1749 has a highly linear sample-and-hold circuit with a bandwidth of 500MHz. The SFDR is 80dB with an input frequency of 250MHz. Ultralow jitter of 0.15psRMS allows undersampling of IF frequencies with minimal degradation in SNR. DC specs include ±1LSB INL and no missing codes.

The digital interface of LTC1749 is compatible with 5V, 3V, 2V and LVDS logic systems. The ENC and ENC inputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gain ENC and ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate output power supply can be operated from 0.5V to 5V, making it easy to connect directly to low voltage DSPs or FIFOs.

The 48-pin TSSOP package with a flow-through pinout simplifies the board layout.
