LTC1741

Features: · Sample Rate: 65Msps· 72dB SNR and 85dB SFDR (3.2V Range)· 70.5dB SNR and 87dB SFDR (2V Range)· No Missing Codes· Single 5V Supply· Power Dissipation: 1.275W· Selectable Input Ranges: ±1V or ±1.6V· 240MHz Full Power Bandwidth S/H· Pin Compatible Family 25Msps: LTC1746 (14-Bit), LTC1745(...

product image

LTC1741 Picture
See larger image
SeekIC No. : 004401865 Detail

LTC1741: Features: · Sample Rate: 65Msps· 72dB SNR and 85dB SFDR (3.2V Range)· 70.5dB SNR and 87dB SFDR (2V Range)· No Missing Codes· Single 5V Supply· Power Dissipation: 1.275W· Selectable Input Ranges: ±1V...

LTC1741 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1741
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Sample Rate: 65Msps
· 72dB SNR and 85dB SFDR (3.2V Range)
· 70.5dB SNR and 87dB SFDR (2V Range)
· No Missing Codes
· Single 5V Supply
· Power Dissipation: 1.275W
· Selectable Input Ranges: ±1V or ±1.6V
· 240MHz Full Power Bandwidth S/H
· Pin Compatible Family
    25Msps: LTC1746 (14-Bit), LTC1745(12-Bit)
    50Msps: LTC1744 (14-Bit), LTC1743(12-Bit)
    65Msps: LTC1742 (14-Bit), LTC1741(12-Bit)
    80Msps: LTC1748 (14-Bit), LTC1747(12-Bit)
· 48-Pin TSSOP Package


Application

· Telecommunications
· Receivers
· Cellular Base Stations
· Spectrum Analysis
· Imaging Systems

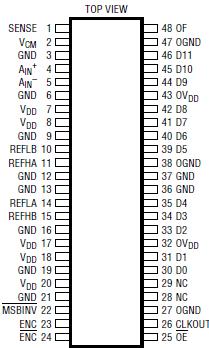

Pinout

Connection Diagram


Specifications

Supply Voltage (VDD) ............................................. 5.5V
Analog Input Voltage (Note 3) ... 0.3V to (VDD + 0.3V)
Digital Input Voltage (Except OE)
   (Note 3) .................................. 0.3V to (VDD + 0.3V)
OE Input Voltage (Note 4) .......... 0.3V to (VDD + 0.3V)
Digital Output Voltage ............... 0.3V to (VDD + 0.3V)
OGND Voltage..............................................0.3V to 1V
Power Dissipation ............................................ 2000mW
Operating Temperature Range
   LTC1741C .............................................. 0°C to 70°C
   LTC1741I........................................... 40°C to 85°C
Storage Temperature Range ..............65°C to 150°C
Lead Temperature (Soldering, 10 sec)................. 300°C


Description

The LTC®1741 is an 65Msps, sampling 12-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. Pin selectable input ranges of ±1V and ±1.6V along with a resistor programmable mode allow the LTC1741's input range to be optimized for a wide variety of applications.

The LTC1741 is perfect for demanding communications applications with AC performance that includes 72dB SNR and 85dB spurious free dynamic range. Ultralow jitter of 0.15psRMS allows undersampling of IF frequencies of up to 70MHz with excellent noise performance. DC specs include ±1 LSB INL and ±0.8LSB DNL over temperature.

The digital interface of LTC1742 is compatible with 5V, 3V, 2V and LVDS logic systems. The ENC and ENC inputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gain ENC and ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate output power supply can be operated from 0.5V to 5V, making it easy to connect directly to any low voltage DSPs or FIFOs.

The TSSOP package with a flow-through pinout simplifies the board layout.
