LTC1665

Features: Tiny: 8 DACs in the Board Space of an SO-8Micropower: 56m A per DAC Plus1 A Sleep Mode for Extended Battery LifePin Compatible 8-Bit LTC1665 and 10-Bit LTC1660Wide 2.7V to 5.5V Supply RangeRail-to-Rail Voltage Outputs Drive 1000pFReference Range Includes Supply for Ratiometric0V-to-VCCOu...

product image

LTC1665 Picture
See larger image
SeekIC No. : 004401786 Detail

LTC1665: Features: Tiny: 8 DACs in the Board Space of an SO-8Micropower: 56m A per DAC Plus1 A Sleep Mode for Extended Battery LifePin Compatible 8-Bit LTC1665 and 10-Bit LTC1660Wide 2.7V to 5.5V Supply Rang...

LTC1665 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1665
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Tiny: 8 DACs in the Board Space of an SO-8
Micropower: 56m A per DAC Plus
1 A Sleep Mode for Extended Battery Life
Pin Compatible 8-Bit LTC1665 and 10-Bit LTC1660Wide 2.7V to 5.5V Supply Range
Rail-to-Rail Voltage Outputs Drive 1000pF
Reference Range Includes Supply for Ratiometric0V-to-VCC Output
Reference Input Impedance is Constant-Eliminates External Buffer




Application

Mobile Communications
Remote Industrial Devices
Automatic Calibration for Manufacturing
Portable Battery-Powered Instruments
Trim/Adjust Applications


Pinout

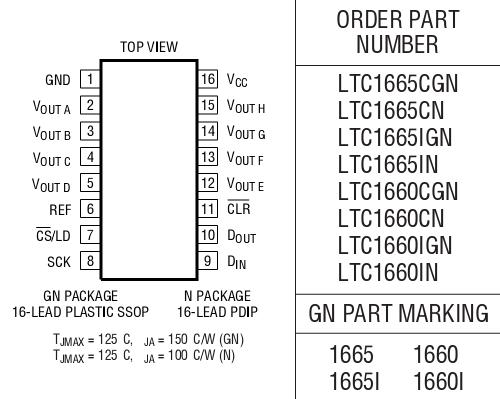

Connection Diagram


Specifications

VCC to GND............................................ 0.2V to 7.5V
Logic Inputs to GND............................... 0.2V to 7.5V
VOUTA , VOUTB .VOUTH,
REF to GND .................................0.2V to (VCC+ 0.2V)
Maximum Junction Temperature......................... 125 C
Operating Temperature Range
   LTC1665C/LTC1660C.............................  0 C to 70 C
   LTC1665I/LTC1660I .......................... 40 C to 85 C
Storage Temperature Range............... 65 C to 150 C
Lead Temperature (Soldering, 10 sec)..............  300 C


Description

The 8-bit LTC ®1665 and 10-bit LTC1660 integrate eightaccurate, serially addressable digital-to-analog convert-ers (DACs) in tiny 16-pin narrow SSOP packages. Eachbuffered DAC draws just 56m A total supply current, yet iscapable of supplying DC output currents in excess of5mA and reliably driving capacitive loads to 1000pF.Sleep mode further reduces total supply current to 1m A.

Linear Technology's proprietary, inherently monotonicvoltage interpolation architecture provides excellent lin-earity while allowing for an exceptionally small externalform factor.

Ultralow supply current, power-saving Sleep mode andextremely compact size make the LTC1665 and LTC1660ideal for battery-powered applications, while their ease ofuse, high performance and wide supply range make them excellent choices as general purpose converters.
