LTC1605

Features: * Sample Rate: 100ksps* Single 5V Supply* Bipolar Input Range: ±10V* Power Dissipation: 55mW Typ* Integral Nonlinearity: ±2.0LSB* Guaranteed No Missing Codes* Signal-to-Noise Ratio: 86dB Typ* Operates with Internal or External Reference* Internal Synchronized Clock* 28-Pin 0.3 PDIP, SSO...

product image

LTC1605 Picture
See larger image
SeekIC No. : 004401731 Detail

LTC1605: Features: * Sample Rate: 100ksps* Single 5V Supply* Bipolar Input Range: ±10V* Power Dissipation: 55mW Typ* Integral Nonlinearity: ±2.0LSB* Guaranteed No Missing Codes* Signal-to-Noise Ratio: 86dB T...

LTC1605 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1605
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:


* Sample Rate: 100ksps
* Single 5V Supply
* Bipolar Input Range: ±10V
* Power Dissipation: 55mW Typ
* Integral Nonlinearity: ±2.0LSB
* Guaranteed No Missing Codes
* Signal-to-Noise Ratio: 86dB Typ
* Operates with Internal or External Reference
* Internal Synchronized Clock
* 28-Pin 0.3" PDIP, SSOP and SW Packages
* Improved 2nd Source to ADS7805 and AD976
* Industrial Process Control
* Multiplexed Data Acquisition


Application

* Industrial Process Control
* Multiplexed Data Acquisition Systems
* High Speed Data Acquisition for PCs
* Digital Signal Processing


Pinout

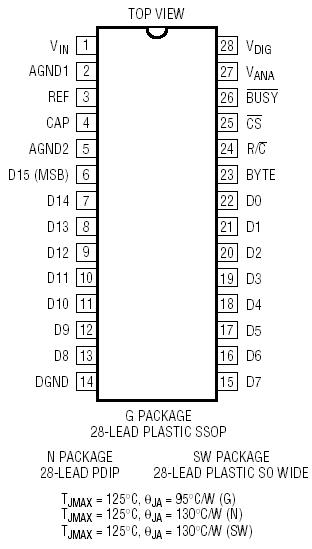

Connection Diagram


Specifications

VANA ....................................................................... 7V
VDIG to VANA ....................................................... 0.3V
VDIG ....................................................................... 7V
Ground Voltage Difference
DGND, AGND1 and AGND2 ................................. ±0.3V
Analog Inputs (Note 3)
VIN ..................................................................... ±25V
CAP ...............................VANA + 0.3V to AGND2 0.3V
REF ...................................... Indefinite Short to AGND2
Momentary Short to VANA
Digital Input Voltage (Note 4) ......... VSS 0.3V to 10V
Digital Output Voltage... VDGND 0.3V to VDIG + 0.3V
Power Dissipation............................................. 500mW
Operating Ambient Temperature Range
LTC1605C................................................ 0°C to 70°C
LTC1605I........................................... 40°C to 85°C
Storage Temperature Range ........... 65°C to 150°C
Lead Temperature (Soldering, 10 sec)............... 300°C


Description

The LTC®1605 is a 100ksps, sampling 16-bit A/D converter that draws only 55mW (typical) from a single 5V supply. This easy-to-use device includes sample-andhold,precision reference, switched capacitor successive approximation A/D and trimmed internal clock.

The LTC1605's input range is an industry standard ±10V.Maximum DC specs include ±2.0LSB INL and 16-bits nomissing codes over temperature. An external referencecan be used if greater accuracy over temperature isneeded.

The ADC has a microprocessor compatible, 16-bit or two byte parallel output port. A convert start input and a data ready signal (BUSY) ease connections to FIFOs, DSPs andmicroprocessors.
