Product Details

Description



Features:

A Complete, 250ksps 16-Bit ADC
90dB S/(N+D) and 100dB THD (Typ)
Power Dissipation: 220mW (Typ)
Nap (7mW) and Sleep (10µW) Shutdown Modes
No Pipeline Delay
No Missing Codes over Temperature
Operates with Internal 15ppm/°C Reference
or External Reference
True Differential Inputs Reject Common Mode Nois
5MHz Full Power Bandwidth
±2.5V Bipolar Input Range
Pin Compatible with LTC1604 and LTC1608
36-Pin SSOP Package


Application

Telecommunications
Digital Signal Processing
Multiplexed Data Acquisition Systems
High Speed Data Acquisition
Spectrum Analysis
Imaging Systems


Pinout

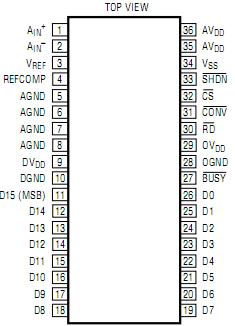

Connection Diagram


Specifications

AVDD = DVDD = OVDD = VDD (Notes 1, 2)
Supply Voltage (VDD) ........................................................  6V
Negative Supply Voltage (VSS) .......................................  6V
Total Supply Voltage (VDD to VSS) ...................................  12V
Analog Input Voltage
     (Note 3) ................................ (VSS 0.3V) to (VDD + 0.3V)
VREF Voltage (Note 4) ........................  0.3V to (VDD + 0.3V)
REFCOMP Voltage (Note 4) ................. 0.3V to (VDD + 0.3V)
Digital Input Voltage (Note 4) ............................0.3V to 10V
Digital Output Voltage ......................... 0.3V to (VDD + 0.3V)
Power Dissipation.......................................................  500mW
Operating Temperature Range
     LTC1603C ....................................................  0°C to 70°C
     LTC1603I ................................................. 40°C to 85°C
Storage Temperature Range .....................  65°C to 150°C
Lead Temperature (Soldering, 10 sec) ........................  300°C


Description

The LTC® 1603 is a 250ksps, 16-bit sampling A/D con-verter that draws only 220mW from ±5V supplies. This high performance device includes a high dynamic range sample-and-hold, a precision reference and a high speed parallel output. Two digitally selectable power shutdown modes provide power savings for low power systems.
The LTC1603's full-scale input range is ±2.5V. Outstand-ing AC performance includes 90dB S/(N+D) and 100dB THD at a sample rate of 250ksps.
The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 15MHz bandwidth. The 68dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.
The ADC has µP compatible,16-bit parallel output port. There is no pipeline delay in conversion results. A separate convert start input and a data ready signal (BUSY) ease connections to FlFOs, DSPs and microprocessors.
