LTC1594L

Supply Voltage (VCC) to GND ............................... 12V
Voltage
Analog Reference .................... 0.3V to (VCC + 0.3V)
Analog Inputs .......................... 0.3V to (VCC + 0.3V)
Digital Inputs .........................................0.3V to 12V
Digital Output .......................... 0.3V to (VCC + 0.3V)
Power Dissipation ............................................ 500mW
Operating Temperature Range
LTC1594LCS/LTC1598LCG ..................... 0°C to 70°C
LTC1594LIS/LTC1598LIG ................. 40°C to 85°C
Storage Temperature Range ........... 65°C to 150°C
Lead Temperature (Soldering, 10 sec)............... 300°C


Description

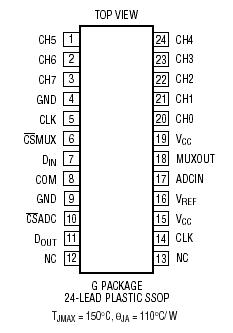

The LTC®1594L/LTC1598L are 3V micropower, 12-bit sampling A/D converters that feature 4- and 8-channel multiplexers, respectively. They typically draw only 160mA of supply current when converting and automatically power down to a typical supply current of 1nA between conversions. The LTC1594L is available in a 16-pin SO package and the LTC1598L is packaged in a 24-pin SSOP. Both operate on a 3V supply. The 12-bit, switchedcapacitor, successive approximation ADCs include a sample-and-hold.

On-chip serial ports allow efficient data transfer to a wide range of microprocessors and microcontrollers over three or four wires. This, coupled with micropower consumption, makes remote location possible and facilitates transmitting data through isolation barriers. The circuit can be used in ratiometric applications or with an external reference.

The high impedance analog of LTC1594L/LTC1598L inputs and the ability to operate with reduced spans (to 1.5V full scale) allow direct connection to sensors and transducers in many applications, eliminating the need for gain stages.
