LTC1594IS

Series: -
Number of Converters: 1
Voltage Supply Source: Single Supply
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C
Number of Bits: 12
Packaging: Tube
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 16-SOIC
Number of Inputs and Type: 8 Single-Ended, Unipolar
Manufacturer: Linear Technology
Power Dissipation (Max): 1.6mW
Sampling Rate (Per Second): 16.8k
Data Interface: MICROWIRE?, QSPI?, Serial, SPI?


Features:

12-Bit Resolution
Auto Shutdown to 1nA
Low Supply Current: 320mA Typ
Guaranteed ±3/4LSB Max DNL
Single Supply 5V Operation (3V Versions Available: LTC1594L/LTC1598L)
Multiplexer: 4-Channel MUX (LTC1594) 8-Channel MUX (LTC1598)
 Separate MUX Output and ADC Input Pins
MUX and ADC May Be Controlled Separately
Sampling Rate: 16.8ksps
I/O Compatible with QSPI, SPI and MICROWIRETM, etc.
Small Package: 16-Pin Narrow SO (LTC1594)24-Pin SSOP (LTC1598)


Application

Pen Screen Digitizing
Battery-Operated Systems
Remote Data Acquisition
Isolated Data Acquisition
Battery Monitoring
Temperature Measurement

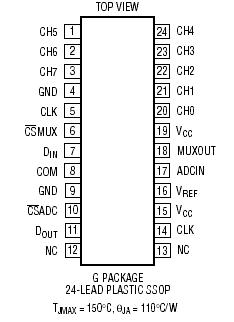

Pinout




Specifications

Supply Voltage (VCC) to GND ................................ 12V
Voltage
Analog Reference .................... 0.3V to (VCC + 0.3V)
Analog Inputs .......................... 0.3V to (VCC + 0.3V)
Digital Inputs .........................................0.3V to 12V
Digital Output .......................... 0.3V to (VCC + 0.3V)
Power Dissipation ............................................ 500mW
Operating Temperature Range
LTC1594CS/LTC1598CG ......................... 0°C to 70°C
LTC1594IS/LTC1598IG .....................  40°C to 85°C
Storage Temperature Range ............ 65°C to 150°C
Lead Temperature (Soldering, 10 sec)................ 300°C


Description

The LTC®1594/LTC1598 are micropower, 12-bit sampling A/D converters that feature 4- and 8-channel multiplexers, respectively. They typically draw only 320mA of supply current when converting and automatically power down to a typical supply current of 1nA between conversions. The LTC1594 is available in a 16-pin SO package and the LTC1598 is packaged in a 24-pin SSOP. Both operate on a 5V supply.

The 12-bit, switched-capacitor, successive approximation ADCs include a sample-and-hold. On-chip serial ports allow efficient data transfer to a wide range of microprocessors and microcontrollers over three or four wires. This, coupled with micropower consumption, makes remote location possible and facilitates transmitting data through isolation barriers.

The LTC1594/LTC1598 circuit can be used in ratiometric applications or with an external reference. The high impedance analog inputs and the ability to operate with reduced spans (to 1.5V full scale) allow direct connection to sensors and transducers in many applications, eliminating the need for gain stages.



Parameters:

Technical/Catalog Information
LTC1594IS
Vendor
Linear Technology
Category
Integrated Circuits (ICs)

Number of Bits
12
Package / Case
16-SOIC (3.9mm Width)
Data Interface
Serial
Packaging
Tube
Sampling Rate (Per Second)
16.8M
Operating Temperature
-40°C ~ 85°C
Voltage Supply Source
Single
Number of Inputs and Type
8 Single-Ended, Unipolar
Number of Converters
1
Power Dissipation (Max)
1.6mW
Drawing Number
161; 05-08-1610; S; 8

Lead Free Status
Contains Lead

RoHS Status
RoHS Non-Compliant


Other Names

            LTC1594IS
      LTC1594IS
