LTC1563-2

Features: Extremely Easy to Use-A Single Resistor Value Sets the Cutoff Frequency(2.56kHz < fC < 256kHz)Extremely Flexible-Different Resistor Values Allow Arbitrary Transfer Functions with or without Gain (2.56kHz < fC < 256kHz)LTC1563-2: Unity-Gain Butterworth Response Uses a Single R...

product image

LTC1563-2 Picture
See larger image
SeekIC No. : 004401696 Detail

LTC1563-2: Features: Extremely Easy to Use-A Single Resistor Value Sets the Cutoff Frequency(2.56kHz < fC < 256kHz)Extremely Flexible-Different Resistor Values Allow Arbitrary Transfer Functions with or ...

LTC1563-2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1563-2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Extremely Easy to Use-A Single Resistor Value Sets the Cutoff Frequency(2.56kHz < fC < 256kHz)
Extremely Flexible-Different Resistor Values Allow Arbitrary Transfer Functions with or without Gain (2.56kHz < fC < 256kHz)
LTC1563-2: Unity-Gain Butterworth Response Uses a Single Resistor Value, Different Resistor Values Allow Other Responses with or without Gain
LTC1563-3: Unity-Gain Bessel Response Uses a Single Resistor Value, Different Resistor Values Allow Other Responses with or without Gain
Rail-to-Rail Input and Output Voltages
Operates from a Single 3V (2.7V Min) to ±5V Supply
Low Noise: 36mVRMS for fC = 25.6kHz, 60mVRMS for fC = 256kHz
fC Accuracy < ±2% (Typ)
DC Offset < 1mV
Cascadable to Form 8th Order Lowpass Filters
Low Power Mode, fC < 25.6kHz, ISUPPLY =1mA (Typ)
High Speed Mode, fC < 256kHz, ISUPPLY = 10mA (Typ)
Shutdown Mode, ISUPPLY = 1mA (Typ)
Continuous Time, Active RC Filter, No Clock


Application

 Replaces Discrete RC Active Filters and Modules
 Antialiasing Filters
 Smoothing or Reconstruction Filters
 Linear Phase Filtering for Data Communication
 Phase Locked Loops


Pinout

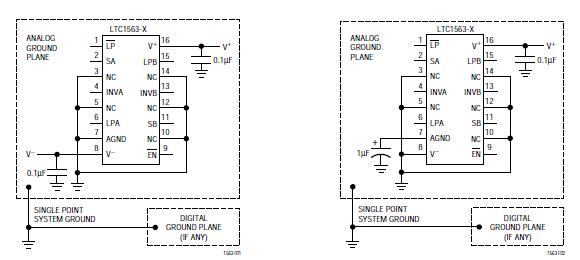

Connection Diagram


Specifications

Total Supply Voltage (V+ to V) ............................ 11V
Maximum Input Voltage at
Any Pin .................... (V 0.3V) £ VPIN £ (V+ + 0.3V)
Power Dissipation ............................................ 500mW
Operating Temperature Range
LTC1563C ............................................... 0°C to 70°C
LTC1563I............................................ 40°C to 85°C
Storage Temperature Range ........... 65°C to 150°C
Lead Temperature (Soldering, 10 sec)............... 300°C


Description

The LTC®1563-2/LTC1563-3 are a family of extremely easy-to-use, active RC lowpass filters with rail-to-rail inputs and outputs and low DC offset suitable for systems with a resolution of up to 16 bits. The LTC1563-2, with a single resistor value, gives a unity-gain Butterworth response. The LTC1563-3, with a single resistor value,gives a unity-gain Bessel response. The proprietary architecture of these parts allows for a simple resistor calculation:
     R = 10k (256kHz/fC); fC = Cutoff Frequency

where fC is the desired cutoff frequency. For many applications,this formula is all that is needed to design a filter.By simply utilizing different valued resistors, gain and other responses are achieved.

The LTC1563-X features a low power mode, for the lower frequency applications, where the supply current is reduced by an order of magnitude and a near zero power shutdown mode.
