Series: -
Mounting Type: Surface Mount
Packaging: Tube
Manufacturer: Linear Technology
Filter Order: 8th
Frequency - Cutoff or Center: 300kHz
Number of Filters: 4
Filter Type: Universal, Continuous-Time
Voltage - Supply: 4.75 V ~ 10.5 V, ±4.75 V ~ 5.25 V
Package / Case: 20-SSOP (0.209", 5.30mm Width)
Supplier Device Package: 20-SSOP
Features: ` Continuous Time-No Clock
`Four 2nd Order Filter Sections, 20kHz to 300kHz Center Frequency
` Butterworth, Chebyshev, Elliptic or Equiripple Delay Response
`Lowpass, Bandpass, Highpass Responses
`99dB Typical S/N, ±5V Supply (Q = 1)
`93dB Typical S/N, Single 5V Supply (Q = 1)
` Rail-to-Rail Input and Output Voltages
`DC Accurate to 3mV (Typ)
`±0.5% Typical Center Frequency Accuracy
`"Zero-Power" Shutdown Mode
`Single or Dual Supply, 5V to 10V Total
`Resistor-Programmable fO, Q, GainApplication· High Resolution Systems (14 Bits to 18 Bits)
· Antialiasing/Reconstruction Filters
· Data Communications, Equalizers
· Dual or I-and-Q Channels (Two Matched 4th Order Filters in One Package)
· Linear Phase Filtering

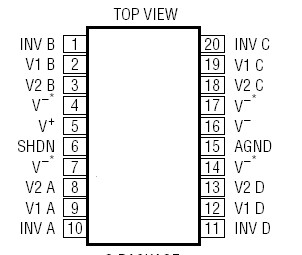

· Replacing LC Filter ModulesPinout
SpecificationsTotal Supply Voltage (V+ to V) .............................. 11V
Maximum Input Voltage
at Any Pin .....................(V 0.3V) V (V + + 0.3V)
Storage Temperature Range ............. 65°C to 150°C
Operating Temperature Range
LTC1562C-2 ............................................. 0°C to 70°C
LTC1562I-2 ......................................... 40°C to 85°C
Lead Temperature (Soldering, 10 sec)................. 300°CDescriptionThe LTC®1562-2 is a low noise, low distortion continuous time filter with rail-to-rail inputs and outputs, optimized for a center frequency (fO) of 20kHz to 300kHz. Unlike most monolithic filters, no clock is needed. Four independent 2nd order filter blocks can be cascaded in any combination, such as one 8th order or two 4th order filters. Each block's response is programmed with three external resistors for center frequency, Q and gain, using simple design formulas. Each 2nd order block provides lowpass and bandpass outputs. Highpass response is available if an external capacitor replaces one of the resistors. Allpass, notch and elliptic responses can also be realized.
The LTC1562-2 is designed for applications where dynamic range is important. For example, by cascading 2nd order sections in pairs, the user can configure the IC as a dual 4th order Butterworth lowpass filter with 90dB signal-to-noise ratio from a single 5V power supply. Low level signals can exploit the built-in gain capability of the LTC1562-2. Varying the gain of a section can achieve a dynamic range as high as 114dB with a ±5V supply.
Other cutoff frequency ranges can be provided upon request. Please contact LTC Marketing.
Parameters: | Technical/Catalog Information | LTC1562IG-2 |
| Vendor | Linear Technology |
| Category | Integrated Circuits (ICs) |
| Package / Case | 20-SSOP |
| Filter Type | Universal, Continuous-Time |
| Voltage - Supply | 4.75 V ~ 10.5 V, ±4.75 V ~ 5.25 V |
| Number of Filters | 4 |
| Max-Order | 8th |
| Frequency - Cutoff or Center | 300kHz |
| Packaging | Tube |
| Drawing Number | 161; 05-08-1640; G; 16 |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | LTC1562IG 2
LTC1562IG2
|
LTC1562IG-2 Data Sheet
