Product Details

Description



Features:

·Software-Selectable Transceiver Supports: RS232, RS449, EIA530, EIA530-A, V.35, V.36, X.21
·TUV Telecom Services Inc. Certified NET1, NET2 and TBR2 Compliant
·On-Chip Cable Termination
·Pin Compatible with LTC1543
·Complete DTE or DCE Port with LTC1544
·Operates from Single 5V Supply
·Small Footprint


Application

·Data Networking
·CSU and DSU
·Data Routers

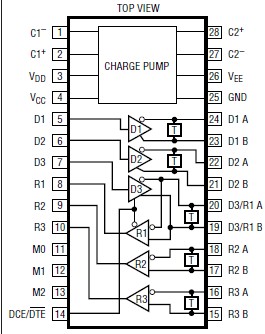

Pinout

Connection Diagram


Specifications

Supply Voltage ..................................................... 6.5V
Input Voltage
Transmitters ........................... 0.3V to (VCC + 0.3V)
Receivers ............................................... 18V to 18V
Logic Pins .............................. 0.3V to (VCC + 0.3V)
Output Voltage
Transmitters ................. (VEE 0.3V) to (VDD + 0.3V)
Receivers ............................... 0.3V to (VCC + 0.3V)
VEE........................................................ 10V to 0.3V
VDD ...................................................... 0.3V to 10V
Short-Circuit Duration
Transmitter Output ..................................... Indefinite
Receiver Output .......................................... Indefinite
VEE.................................................................. 30 sec
Operating Temperature Range
LTC1546C ............................................. 0°C to 70°C
LTC1546I.......................................... 40°C to 85°C
Storage Temperature Range ........ 65°C to 150°C
Lead Temperature (Soldering, 10 sec)............. 300°C


Description

The LTC®1546 is a 3-driver/3-receiver multiprotocol transceiver with on-chip cable termination. When combined with the LTC1544, this chip set forms a complete softwareselectable DTE or DCE interface port that supports the RS232, RS449, EIA530, EIA530-A, V.35, V.36 and X.21 protocols. All necessary cable termination is provided inside the LTC1546. In most applications, the LTC1546 replaces both an LTC1543 and an LTC1344A without any changes to the PC board.

The LTC1546 runs from a single 5V supply using an internal charge pump that requires only five space-saving surface mounted capacitors. The LTC1546 is available in a 28-lead SSOP surface mount package.
