LTC1514-5

Features: 3.3V or 5V Output Voltages2V to 10V Input Voltage RangeUp to 50mA Output CurrentOnly Three External Capacitors RequiredSoft Start Limits Inrush Current at Turn-OnLow Operating Current: 60ALow Shutdown Current: 10AShutdown Disconnects Load from VINShort-Circuit and Overtemperature Protect...

product image

LTC1514-5 Picture
See larger image
SeekIC No. : 004401644 Detail

LTC1514-5: Features: 3.3V or 5V Output Voltages2V to 10V Input Voltage RangeUp to 50mA Output CurrentOnly Three External Capacitors RequiredSoft Start Limits Inrush Current at Turn-OnLow Operating Current: 60A...

LTC1514-5 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1514-5
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

3.3V or 5V Output Voltages
2V to 10V Input Voltage Range
Up to 50mA Output Current
Only Three External Capacitors Required
Soft Start Limits Inrush Current at Turn-On
Low Operating Current: 60A
Low Shutdown Current: 10A
Shutdown Disconnects Load from VIN
Short-Circuit and Overtemperature Protected
650kHz Switching Frequency
Low-Battery Comparator Active in Shutdown
Available in SO-8 Package


Application

Battery-Operated Equipment
Smart Card Readers
Local Power Supplies
Handheld Instruments
Battery Backup Supplies

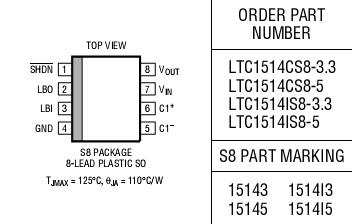

Pinout

Connection Diagram


Specifications

VIN to GND................................................ 0.3V to 12V
VOUT to GND............................................. 0.3V to 12V
SHDN, LBI, LBO to GND ........................... 0.3V to 12V
VOUT Short-Circuit Duration.............................Indefinite
Operating Temperature Range
        Commercial.......................................0°C to 70°C
        Industrial.....................................40°C to 85°C
Storage Temperature Range..............65°C to 150°C
Lead Temperature (Soldering, 10 sec).................300°C


Description

The LTC(R) 1514-3.3/LTC1514-5 are micropower switched capacitor DC/DC converters that produce a regulated output voltage by either stepping up or stepping down the input voltage. Output voltage is fixed at either 3.3V(LTC1514-3.3) or 5V (LTC1514-5) by an internal resistor divider.

A unique architecture of  LTC(R) 1514-3.3/LTC1514-5 allows the parts to accommodate a wide input voltage range (2V to 10V) while maintaining ±4% regulation. Additional circuitry prevents excessive inrush current and output voltage ripple when large VINto VOUT differentials are present.

An internal uncommitted comparator is kept active in shutdown. The comparator has an open-drain output for flexible interfacing.

The parts are short-circuit and overtemperature pro- tected. Battery life is maximized by very low operating currents (ICC = 60A typ, 10A in shutdown). Both parts are available in an SO-8 package.
