LTC1436-PLL

Features: n Maintains Constant Frequency at Low Output Currentsn Dual N-Channel MOSFET Synchronous Driven Programmable Fixed Frequency (PLL Lockable)n Wide VIN Range: 3.5V to 36V Operationn Ultrahigh Efficiencyn Very Low Dropout Operation: 99% Duty Cyclen Low Dropout, 0.5A Linear Regulator for VPP...

product image

LTC1436-PLL Picture
See larger image
SeekIC No. : 004401587 Detail

LTC1436-PLL: Features: n Maintains Constant Frequency at Low Output Currentsn Dual N-Channel MOSFET Synchronous Driven Programmable Fixed Frequency (PLL Lockable)n Wide VIN Range: 3.5V to 36V Operationn Ultrahig...

LTC1436-PLL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1436-PLL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

n Maintains Constant Frequency at Low Output Currents
n Dual N-Channel MOSFET Synchronous Drive
n Programmable Fixed Frequency (PLL Lockable)
n Wide VIN Range: 3.5V to 36V Operation
n Ultrahigh Efficiency
n Very Low Dropout Operation: 99% Duty Cycle
n Low Dropout, 0.5A Linear Regulator for VPP Generation or Low Noise Audio Supply
n Built-In Power-On Reset Timer
n Programmable Soft Start
n Low-Battery Detector
n Remote Output Voltage Sense
n Foldback Current Limiting (Optional)
n Pin Selectable Output Voltage
n Logic Controlled Micropower Shutdown: IQ < 25A
n Output Voltages from 1.19V to 9V
n Available in 24-Lead Narrow SSOP and 28-Lead SSOP Packages


Application

Notebook and Palmtop Computers, PDAs
Cellular Telephones and Wireless Modems
Portable Instruments
Battery-Operated Devices
DC Power Distribution Systems


Pinout

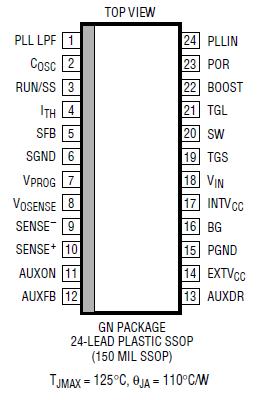

Connection Diagram




Specifications

Input Supply Voltage (VIN).................................................. 36V to 0.3V
Topside Driver Supply Voltage (Boost) ............................... 42V to 0.3V
Switch Voltage (SW)............................................................ VIN + 5V to 5V
EXTVCC Voltage .................................................................. 10V to 0.3V
POR, LBO Voltages .............................................................. 12V to 0.3V
AUXFB Voltage .................................................................... 20V to 0.3V
AUXDR Voltage..................................................................... 28V to 0.3V
SENSE+, SENSE,VOSENSE Voltages..................................... INTVCC + 0.3V to 0.3V
VPROG Voltage..................................................................... INTVCC to 0.3V
PLL LPF, ITH Voltages ......................................................... 2.7V to 0.3V
AUXON, PLLIN, SFB,RUN/SS, LBI Voltages .......................... 10V to 0.3V
Peak Driver Output Current < 10s (TGL, BG)..................... 2A
Peak Driver Output Current < 10s (TGS) .......................... 250mA
INTVCC Output Current ...................................................... 50mA
Operating Temperature Range
    LTC143XC ...................................................................... 0°C to 70°C
    LTC143XI ....................................................................... 40°C to 85°C
Junction Temperature (Note 1) .......................................... 125°C
Storage Temperature Range ............................................. 65°C to 150°C
Lead Temperature (Soldering, 10 sec)............................... 300°C


Description

The LTC®1436/LTC1437 are synchronous step-down switching regulator controllers which drive external N-channel power MOSFETs in a phase lockable, fixed frequency architecture. The Adaptive PowerTM output stage selectively drives two N-channel MOSFETs at frequencies up to 400kHz while reducing switching losses to maintain high efficiencies at low output currents.


An auxiliary 0.5A linear regulator of  LTC1436/LTC1437  is using an external PNP pass device provides a low noise, low dropout voltage source. A secondary winding feedback control pin (SFB) guarantees regulation regardless of load on the main output by forcing continuous operation.

An additional comparator is available for use as a lowbattery detector. A power-on reset timer (POR) is included which generates a signal delayed by 65536/fCLK (300ms typically) after the output is within 5% of the regulated output voltage. Internal resistive dividers provide pin selectable output voltages with remote sense capability.

The operating current level of  LTC1436/LTC1437 is user-programmable via an external current sense resistor. Wide input supply range allows operation from 3.5V to 30V (36V maximum).
