Features: Single Supply 5V or ±5V OperationSample Rate: 200ksps±1.25LSB INL and ±1LSB DNL MaxPower Dissipation: 15mW (Typ)Parallel or Serial Data OutputNo Missing Codes Over TemperaturePower Shutdown: Nap and SleepExternal or Internal ReferenceDifferential High Impedance Analog InputInput Range: 0...
LTC1418: Features: Single Supply 5V or ±5V OperationSample Rate: 200ksps±1.25LSB INL and ±1LSB DNL MaxPower Dissipation: 15mW (Typ)Parallel or Serial Data OutputNo Missing Codes Over TemperaturePower Shutdow...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

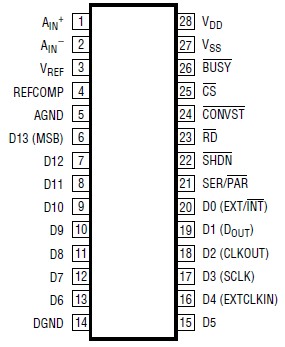

The LTC®1418 is a low power, 200ksps, 14-bit A/D converter. Data output is selectable for 14-bit parallel or serial format. This versatile device can operate from a single 5V or ±5V supply. An onboard high performance sample-and-hold, a precision reference and internal timing minimize external circuitry requirements. The low 15mW power dissipation is made even more attractive with two user selectable power shutdown modes.
The LTC1418 converts 0V to 4.096V unipolar inputs from a single 5V supply and ±2.048V bipolar inputs from ±5V supplies. DC specs include ±1.25LSB INL, ±1LSB DNL and no missing codes over temperature. Outstanding AC performance includes 82dB S/(N + D) and 94dB THD at the Nyquist input frequency of 100kHz.
The flexible output format of LTC1418 allows either parallel or serial I/O. The SPI/MICROWIRETM compatible serial I/O port can operate as either master or slave and can support clock frequencies from DC to 10MHz. A separate convert start input and a data ready signal (BUSY) allow easy control of conversion start and data transfer.
