LTC1410

Features: 1.25Msps Sample RatePower Dissipation: 160mW71dB S/(N + D) and 82dB THD at NyquistNo Pipeline DelayNap (7mW) and Sleep (10µW) Shutdown ModesOperates with Internal 15ppm/°C Reference or External ReferenceTrue Differential Inputs Reject Common Mode Noise20MHz Full Power Bandwidth Sam...

product image

LTC1410 Picture
See larger image
SeekIC No. : 004401558 Detail

LTC1410: Features: 1.25Msps Sample RatePower Dissipation: 160mW71dB S/(N + D) and 82dB THD at NyquistNo Pipeline DelayNap (7mW) and Sleep (10µW) Shutdown ModesOperates with Internal 15ppm/°C Reference ...

LTC1410 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1410
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1.25Msps Sample Rate
Power Dissipation: 160mW
71dB S/(N + D) and 82dB THD at Nyquist
No Pipeline Delay
Nap (7mW) and Sleep (10µW) Shutdown Modes
Operates with Internal 15ppm/°C Reference or External Reference
True Differential Inputs Reject Common Mode Noise
20MHz Full Power Bandwidth Sampling
±2.5V Bipolar Input Range
28-Pin SO Wide Package


Application

Telecommunications
Digital Signal Processing
Multiplexed Data Acquisition Systems
High Speed Data Acquisition
Spectrum Analysis
Imaging Systems


Pinout

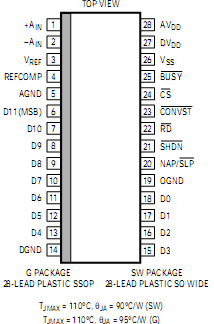

Connection Diagram


Specifications

AVDD= DVDD= VDD(Notes 1, 2)
Supply Voltage (VDD)................................................ 6V
Negative Supply Voltage (VSS)............................... 6V
Total Supply Voltage (VDD to VSS).......................... 12V
Analog Input Voltage
(Note 3)..................................VSS 0.3V to VDD + 0.3V
Digital Input Voltage (Note 4)............VSS 0.3V to 10V
Digital Output Voltage................... 0.3V to VDD + 0.3V
Power Dissipation............................................. 500mW
Operating Temperature Range
LTC1410C................................................ 0°C to 70°C
LTC1410I............................................ 40°C to 85°C
Storage Temperature Range............ 65°C to 150°C
Lead Temperature (Soldering, 10 sec)................. 300°C


Description

The LTC®1410 is a 0.65µs, 1.25Msps, 12-bit sampling A/D converter that draws only 160mW from ±5V supplies.This easy-to-use device includes a high dynamic range sample-and-hold, a precision reference and requires no external components. Two digitally selectable power shut-down modes provide flexibility for low power systems.

The LTC1410's full-scale input range is ±2.5V. Maximum DC specifications include ±1LSB INL and ±1LSB DNL over temperature. Outstanding AC performance includes 71dBS/(N + D) and 82dB THD at the Nyquist input frequency of 625kHz.

The unique differential input sample-and-hold of LTC1410 can acquire single-ended or differential input signals up to its 20MHz bandwidth. The 60dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.

The LTC1410 has a µP compatible, 12-bit parallel output port. There is no pipeline delay in the conversion results. A separate convert start input and a data ready signal (BUSY</a>) ease connections to FIFOs, DSPs and microprocessors.
