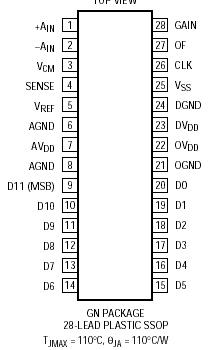

LTC1405

AVDD = DVDD = 0VDD = VDD (Notes 1, 2)
Supply Voltage (VDD) ................................................. 6V
Negative Supply Voltage (VSS) ................................ 6V
Total Supply Voltage (VDD to VSS) ........................... 12V
Analog Input Voltage
(Note 3) ............................. (VSS  0.3V) to (VDD + 0.3V)
Digital Input Voltage
(Note 4) ............................. (VSS  0.3V) to (VDD + 0.3V)
Digital Output Voltage ......... (VSS  0.3V) to (VDD + 0.3V)
Power Dissipation .............................................. 500mW
Operating Temperature Range
LTC1405C .................................................. 0°C to 70°C
LTC1405I.............................................. 40°C to 85°C
Storage Temperature Range .............. 65°C to 150°C
Lead Temperature (Soldering, 10 sec).................. 300°C


Description

The LTC®1405 is a 5Msps, 12-bit sampling A/D converter that draws only 115mW from either single 5V or dual ±5V supplies. This easy-to-use device includes a high dynamic range sample-and-hold, a precision reference and a PGA input circuit. The LTC1405 has a flexible input circuit that allows fullscale input ranges of ±2.048V, ±1.024V and ±0.512V. The input common mode range is rail-to-rail and a common mode bias voltage is provided for single supply applications.

The input PGA of LTC1405 has a digitally selectable 1x or 2x gain. Maximum DC specs include ±1LSB INL and ±1LSB DNL over temperature. Outstanding AC performance includes 71.3dB S/(N + D) and 85dB SFDR at the Nyquist input frequency of 2.5MHz. The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 100MHz bandwidth.

The 75dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source. separate output logic supply allows direct connection to 3V components.
