LTC1385

Features: · Operates from a Single 3.3V Supply· Low Supply Current: ICC = 200mA· ICC = 35mA in Driver Disable Mode· ICC = 0.2mA in Shutdown Mode· ESD Protection Over ±10kV· Uses Small Capacitors: 0.1mF· Operates to 120kBaud· Output Overvoltage Does Not Force Current Back into Supplies· EIA/TIA-562...

product image

LTC1385 Picture
See larger image
SeekIC No. : 004401533 Detail

LTC1385: Features: · Operates from a Single 3.3V Supply· Low Supply Current: ICC = 200mA· ICC = 35mA in Driver Disable Mode· ICC = 0.2mA in Shutdown Mode· ESD Protection Over ±10kV· Uses Small Capacitors: 0....

LTC1385 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1385
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operates from a Single 3.3V Supply
· Low Supply Current: ICC = 200mA
· ICC = 35mA in Driver Disable Mode
· ICC = 0.2mA in Shutdown Mode
· ESD Protection Over ±10kV
· Uses Small Capacitors: 0.1mF
· Operates to 120kBaud
· Output Overvoltage Does Not Force Current Back into Supplies
· EIA/TIA-562 I/O Lines Can Be Forced to ±25V Without Damage
· Pin Compatible with LT1180A


Application

·Notebook Computers
·Palmtop Computers


Pinout

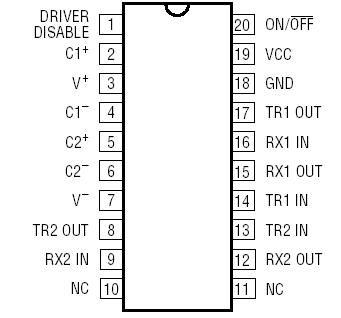

Connection Diagram


Specifications

Supply Voltage (VCC) ..................................... 5V
Input Voltage
Driver ............................... 0.3V to VCC + 0.3V
Receiver ....................................... 25V to 25V
Digital Input ..................... 0.3V to VCC + 0.3V
Output Voltage
Driver .......................................... 25V to 25V
Receiver .......................... 0.3V to VCC + 0.3V
Short-Circuit Duration
V+ ......................................................... 30 sec
V ........................................................ 30 sec
Driver Output ................................... Indefinite
Receiver Output ............................... Indefinite
Operating Temperature Range . 0°C to 70°C
Storage Temperature Rang 65°C to 150°C
Lead Temperature (Soldering, 10 sec). 300°C


Description

The LTC1385 is an ultra-low power, 2-driver/2-receiver EIA / TIA-562 transceiver which operates from a single 3.3V supply. The charge pump requires only four spacesaving 0.1mF capacitors.

The transceiver of LTC1385 operates in one of three modes: Normal, Driver Disable or Shutdown. In the Normal mode, ICC is only 200mA in the unloaded condition. In the Driver Disable mode, the charge pump is turned off, the driver outputs are forced into three-state, both receivers are kept active, and ICC drops to 35mA. In the Shutdown mode, everything is turned off and ICC drops to 0.2mA.

The LTC1385 is fully compliant with all data rate and overvoltage EIA / TIA-562 specifications. The transceiver can operate up to 120kbaud with a 1000pF, 3kW load. Both driver outputs and receiver inputs can be forced to ±25V without damage, and can survive multiple ±10kV ESD strikes.
