LTC1384

Features: ·Operates from a Single 5V Supply·Low Supply Current: ICC = 220mA·ICC = 35mA in Shutdown Mode with Both Receivers Kept Alive·ESD Protection Over ±10kV·Uses Small Capacitors: 0.1mF·Operates to 120kBaud·Output Overvoltage Does Not Force Current Back into Supplies·RS232 I/O Lines Can Be For...

product image

LTC1384 Picture
See larger image
SeekIC No. : 004401532 Detail

LTC1384: Features: ·Operates from a Single 5V Supply·Low Supply Current: ICC = 220mA·ICC = 35mA in Shutdown Mode with Both Receivers Kept Alive·ESD Protection Over ±10kV·Uses Small Capacitors: 0.1mF·Operates...

LTC1384 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1384
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Operates from a Single 5V Supply
·Low Supply Current: ICC = 220mA
·ICC = 35mA in Shutdown Mode with Both Receivers Kept Alive
·ESD Protection Over ±10kV
·Uses Small Capacitors: 0.1mF
·Operates to 120kBaud
·Output Overvoltage Does Not Force Current Back into Supplies
·RS232 I/O Lines Can Be Forced to ±25V Without Damage
·Pin Compatible with LT1180A


Application

·Notebook Computers
·Palmtop Computers


Pinout

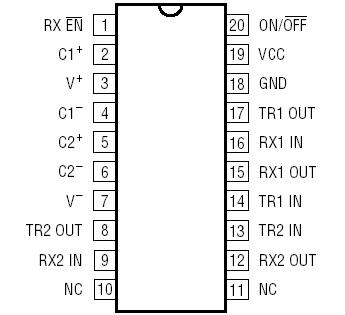

Connection Diagram


Specifications

Supply Voltage (VCC) ............................................ 6V
Input Voltage
Driver ....................................... 0.3V to VCC + 0.3V
Receiver .............................................. 25V to 25V
Digital Input ............................. 0.3V to VCC + 0.3V
Output Voltage
Driver .................................................. 25V to 25V
Receiver .................................. 0.3V to VCC + 0.3V
Short-Circuit Duration
V+ ................................................................ 30 sec
V ............................................................... 30 sec
Driver Output ...........................................Indefinite
Receiver Output .......................................Indefinite
Operating Temperature Range .........0°C to 70°C
Storage Temperature Range .... 65°C to 150°C
Lead Temperature (Soldering, 10 sec).........300°C


Description

The LTC1384 is an ultra-low power 2-driver/2-receiver RS232 transceiver that operates from a single 5V supply. The charge pump requires only four spacesaving 0.1mF capacitors.

The transceiver operates in one of two modes, Normal and Shutdown. In the Normal mode, ICC is only 220mA with the driver outputs unloaded. In the Shutdown mode, the charge pump is turned off, the driver outputs are forced into three-state, both receivers are kept active and ICC drops to 35mA. The receiver outputs may be forced into  three-state at any time using the receiver enable (EN) pin.

The LTC1384 is fully compliant with all data rate and overvoltage RS232 specifications. The transceiver can operate up to 120kbaud with a 2500pF, 3kW load. Both driver outputs and receiver inputs can be forced t ±25V without damage and can survive multiple ±10kV ESD strikes.
