LTC1350

Features: `Low Supply Current 300A`Receivers 4 and 5 Kept Alive in SHUTDOWn 35A`ESD Protection ±10kV`Operates from a Single 3.3V Supply`Uses Small Capacitors 0.1F`Operates to 120k Baud`Three-State Outputs are High Impedance When Off`Output Overvoltage Does Not Force Current Back into Supplies`EIA/...

product image

LTC1350 Picture
See larger image
SeekIC No. : 004401526 Detail

LTC1350: Features: `Low Supply Current 300A`Receivers 4 and 5 Kept Alive in SHUTDOWn 35A`ESD Protection ±10kV`Operates from a Single 3.3V Supply`Uses Small Capacitors 0.1F`Operates to 120k Baud`Three-State O...

LTC1350 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1350
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Low Supply Current 300A
`Receivers 4 and 5 Kept Alive in SHUTDOWn 35A
`ESD Protection ±10kV
`Operates from a Single 3.3V Supply
`Uses Small Capacitors 0.1F
`Operates to 120k Baud
`Three-State Outputs are High Impedance When Off
`Output Overvoltage Does Not Force Current Back into Supplies
`EIA/TIA-562 I/O Lines Can Be Forced to ±25V Without Damage
`Flowthrough Architecture


Application

· Notebook Computers
· Palmtop Computers


Pinout

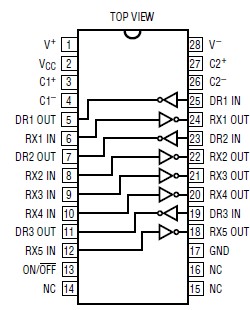

Connection Diagram


Specifications

Supply Voltage (VCC) ................................................ 5V
Input Voltage
Driver ...................................... 0.3V to VCC + 0.3V
Receiver ............................................... 25V to 25V
ON/OFF Pin ............................... 0.3V to VCC + 0.3V
Output Voltage
Driver .................................................... 25V to 25V
Receiver .................................... 0.3V to VCC + 0.3V
Short-Circuit Duration
V+ ................................................................... 30 sec
V ................................................................... 30 sec
Driver Output .............................................. Indefinite
Receiver Output .......................................... Indefinite
Operating Temperature Range
Commercial (LTC1350C) ........................ 0°C to 70°C
Industrial (LTC1350I) ...................... 40°C to 85°C
Storage Temperature Range ......... 65°C to 150°C
Lead Temperature (Soldering, 10 sec).............. 300°C


Description

The LTC1350 is a 3-driver/5-receiver EIA/TIA-562 transceiver with very low supply current. In the no load condition, the supply current is only 300A. The charge pump only requires four 0.1mF capacitors.

In SHUTDOWN mode, two receivers are kept alive and the supply current is only 35A. All RS232 outputs assume a high impedance state in SHUTDOWN or with the power off.

The LTC1350 is fully compliant with all data rate and overvoltage EIA/TIA-562 specifications. The transceiver can operate up to 120k baud with a 1000pF and 3kload. Both driver outputs and receiver inputs can be forced to ±25V without damage and can survive multiple ±10kV ESD strikes.
