Features: ·Low Supply Current: 300mA·Five Receivers Kept Alive in Shutdown·ESD Protection Over ±10kV·Operates from a Single 5V Supply·Uses Small Capacitors: 0.1mF·Operates to 120kBaud·Three-State Outputs Are High Impedance When Off·Output Overvoltage Does Not Force Current Back into Supplies·RS232...
LTC1347: Features: ·Low Supply Current: 300mA·Five Receivers Kept Alive in Shutdown·ESD Protection Over ±10kV·Operates from a Single 5V Supply·Uses Small Capacitors: 0.1mF·Operates to 120kBaud·Three-State Ou...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

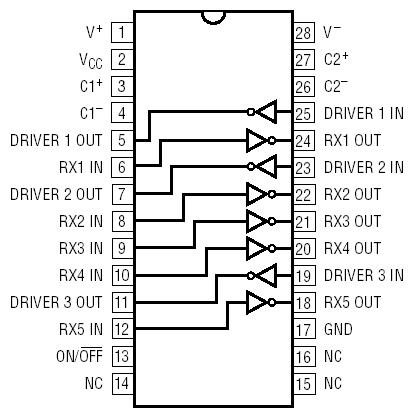

The LTC1347 is a 3-driver/5-receiver RS232 transceiver with very low supply current. In the no load condition, the supply current is only 300mA. The charge pump only requires four 0.1mF capacitors.
In Shutdown mode, all five receivers are kept alive and the supply current is 80mA. All RS232 outputs assume a high impedance state in Shutdown and with the power off.
The LTC1347 is fully compliant with all data rate and overvoltage RS232 specifications. The transceiver can operate up to 120kbaud with a 2500pF, 3kW load. Both driver outputs and receiver inputs can be forced to ±25V without damage, and can survive multiple ±10kV ESD strikes.
