LTC1346ACSW

Series: -
Protocol: -
Mounting Type: Surface Mount
Type: Transceiver
Packaging: Tube
Number of Drivers/Receivers: 3/3
Package / Case: 24-SOIC (0.295", 7.50mm Width)
Supplier Device Package: 24-SOIC
Manufacturer: Linear Technology
Voltage - Supply: 4.75 ~ 5.25V


Features:

Single Chip Provides Complete Differential SignalInterface for V.35 Port
Drivers and Receivers Will Withstand Repeated±10kV ESD Pulses
10Mbaud Transmission Rate
Meets CCITT V.35 Specification
Operates from ±5V Supplies
Shutdown Mode Reduces I_CCto Below 1µA
Selectable Transmitter and Receiver Configurations
Independent Driver/Receiver Enables
Transmitter Maintains High Impedance When
Disabled, Shut Down or with Power Off
Transmitters Are Short-Circuit Protected




Application

Modems
Telecommunications
Data Routers

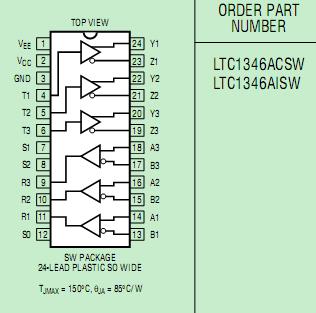

Pinout






Specifications

Supply Voltage
V_CC..................................................................... 6.5V
V_EE................................................................... 6.5V
Input Voltage
Transmitters............................ 0.3V to (VCC+ 0.3V)
Receivers......................... ..................... 18V to 18V
S0, S1, S2................................0.3V to (V_CC+ 0.3V)
Output Voltage
Transmitters.......................................... 18V to 18V
Receivers.................................. 0.3V to (V_CC+ 0.3V)
Short-Circuit Duration
Transmitter Output..................................... Indefinite
Receiver Output.......................................... Indefinite
Operating Temperature Range
LTC1346AC............................................ 0°C to 70°C
LTC1346AI........................................ 40°C to 85°C
Storage Temperature Range.............. 65°C to 150°C
Lead Temperature (Soldering, 10 sec)................. 300°C




Description

The LTC1346A is a single chip transceiver that providesthe differential clock and data signals for a V.35 interface from ±5V supplies. Combined with an external resistortermination network and an LT®1134A RS232 transceiver
for the control signals, the LTC1346A forms a complete lowpower DTE or DCE V.35 interface port.

The LTC1346A features three current output differentialtransmitters and three differential receivers. The trans-ceiver can be configured for DTE or DCE operation orshutdown using three Select pins. In the shutdown mode,
the supply current is reduced to below 1µA.

The LTC1346A transceiver operates up to 10Mbaud. Alltransmitters feature short-circuit protection. Both the trans-
mitter outputs and the receiver outputs can be forced intoa high impedance state. The transmitter outputs and re-
ceiver inputs feature ±10kV ESD protection.

Parameters:

Technical/Catalog Information	LTC1346ACSW
Vendor	Linear Technology
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	3/3
Type	Transceiver
Voltage - Supply	5V
Package / Case	24-SOIC (7.5mm Width)
Packaging	Tube
Protocol	-
Drawing Number	161; 05-08-1620; SW; 16
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	LTC1346ACSW LTC1346ACSW
