Features: Low Supply Current: 500mA 0.2mA Supply Current in SHUTDOWN 50mA Supply Current in RECEIVER ALIVE Mode ESD Protection Over ±10kVOperates from a Single 5V Supply Uses Small Capacitors: 0.1mFOperates to 120k Baud Three-State Outputs Are High Impedance When OffOutput Overvoltage Does Not Fo...
LTC1338: Features: Low Supply Current: 500mA 0.2mA Supply Current in SHUTDOWN 50mA Supply Current in RECEIVER ALIVE Mode ESD Protection Over ±10kVOperates from a Single 5V Supply Uses Small Capacitors: 0.1m...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Supply Voltage (VCC) ............................................ 6V
Input Voltage
Driver ....................................... 0.3V to VCC + 0.3V
Receiver ............................................... 25V to 25V
Driver/Receiver Enable Pin ........ 0.3V to VCC + 0.3V
Output Voltage
Driver .................................................... 25V to 25V
Receiver .................................... 0.3V to VCC + 0.3V
Short Circuit Duration
V+ ................................................................... 30 sec
V ................................................................... 30 sec
Driver Output .............................................. Indefinite
Receiver Output .......................................... Indefinite
Operating Temperature Range
Commercial (LTC1338C) ........................ 0°C to 70°C
Industrial (LTC1338I) ....................... 40°C to 85°C
Storage Temperature Range .......... 65°C to 150°C
Lead Temperature (Soldering, 10 sec)............... 300°C

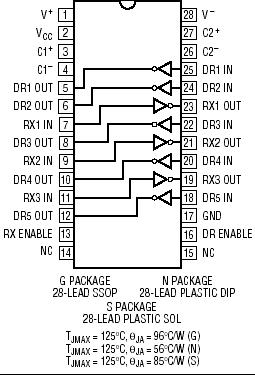

DescriptionThe LTC1338 is a 5-driver/3-receiver RS232 transceiver with very low supply current. In the no load condition, the supply current is only 500mA. The charge pump only requires four 0.1mF capacitors.
In SHUTDOWN mode, the supply current is further reduced to 0.2mA. In RECEIVER ALIVE mode, all three receivers are kept alive and the supply current is 50mA. All RS232 outputs assume a high impedance state in SHUTDOWN and with the power off.
The LTC1338 is fully compliant with all data rate and overvoltage RS232 specifications. The transceiver can operate up to 120k baud with a 2500pF, 3kW load. Both driver outputs and receiver inputs can be forced to ±25V without damage, and can survive multiple ±10kV
