LTC1322

Supply Voltage
VCC ....................................................................... 6.5V
VDD (LTC1321/LTC1322 Only) .............................. 10V
VEE .....................................................................  10V
Input Voltage
Drivers .....................................  0.3V to (VCC + 0.3V)
Receivers ................................................  25V to 25V
ON/OFF, LB, SEL1,
SEL2, OE ..................................  0.3V to (VCC + 0.3V)
Output Voltage
Drivers .....................................................  25V to 25V
Receivers ..................................  0.3V to (VCC + 0.3V)
Output Short-Circuit Duration ......................... Indefinite
Operating Temperature Range
LTC1321C/LTC1322C/LTC1335C ............. 0°C to 70°C
LTC1321I/LTC1322I/LTC1335I .........  40°C to 85°C
Storage Temperature Range ........... 65°C to 150°C
Lead Temperature (Soldering, 10 sec)................ 300°C


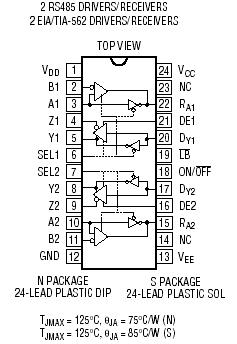

Description

The LTC1321/LTC1322/LTC1335 are low power CMOS bidirectional transceivers, each featuring two reconfigurable interface ports. Each can be configured as two RS485 differential ports, as two single-ended ports, or as one RS485 differential port and one single-ended port. The LTC1321/LTC1322 can provide RS232 or EIA562 compatible single-ended outputs; the LTC1335 provides EIA562 compatible outputs and additionally includes an output enable pin, allowing the receiver logic level outputs to be three-stated.

The RS232/EIA562 transceivers operate to 120kbaud and are in full compliance with EIA/TIA-562 specification. The RS485 transceivers operate to 10Mbaud and are in full compliance with RS485 and RS422 specifications. All interface drivers feature short-circuit and thermal shutdown protection. An enable pin allows RS485 driver outputs to be forced into high impedance which is maintained even when the outputs are forced beyond supply rails or power is off. Both driver outputs and receiver inputs feature ±10kV ESD protection. A loopback mode connects the driver outputs back to the receiver inputs for diagnostic self-test.

The LTC1321/LTC1322 can support RS232 voltage levels when 6.5V £ VDD £ 10V and  6.5V ³ VEE ³ 10V. The LTC1335 supports receiver output enable but not RS232 levels. A shutdown mode reduces the ICC supply current
