LTC1145

Features: ·UL Recognized® (LTC1145A, LTC1146A) File E151738 to UL1577·Low Input Current LTC1145: 700mA LTC1146: 70mA·Maximum Input Frequency LTC1145: 200kHz LTC1146: 20kHz·TTL Level Output·Noise Filter Prevents Glitches at the Output·Output Can Be Synchronized to an External ClockApplication·L...

product image

LTC1145 Picture
See larger image
SeekIC No. : 004401390 Detail

LTC1145: Features: ·UL Recognized® (LTC1145A, LTC1146A) File E151738 to UL1577·Low Input Current LTC1145: 700mA LTC1146: 70mA·Maximum Input Frequency LTC1145: 200kHz LTC1146: 20kHz·TTL Level Output·Noise...

LTC1145 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1145
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·UL Recognized® (LTC1145A, LTC1146A) File E151738 to UL1577
·Low Input Current
   LTC1145: 700mA
   LTC1146: 70mA
·Maximum Input Frequency
   LTC1145: 200kHz
   LTC1146: 20kHz
·TTL Level Output
·Noise Filter Prevents Glitches at the Output
·Output Can Be Synchronized to an External Clock



Application

·Low Power Opto-Isolator Replacement
·Isolated Serial Data Interfaces
·Isolated Power MOSFET Drivers


Pinout

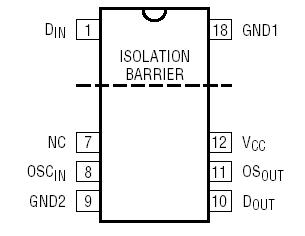

Connection Diagram


Specifications

Supply Voltage ....................................................... 12V
Input Voltage
DIN ............................................ 11V to (GND1 0.3V)
OSCIN .......................... (VCC + 0.3V) to (GND2 0.3V)
Output Voltage
OSOUT, DOUT .............. (VCC + 0.3V) to (GND2 0.3V)
Operating Temperature Range .............. 0°C to 70°C
Storage Temperature Range .......... 65°C to 150°C
Lead Temperature (Soldering, 10 sec)..............300°C


Description

The LTC1145A/LTC1146A provide 2500VRMS (1minute) or 3000VRMS (1 second) of input to output isolation for TTL digital/CMOS signals. The LTC1145/LTC1146 are intended for less stringent applications and are rated for 500VRMS. Unlike opto-isolators, the input current is a mere 70mA for the LTC1146 which can handle frequencies up to 20kHz. The faster LTC1145 will handle frequencies up to 200kHz while only drawing 700mA.

The output signal of LTC1145A/LTC1146A  is in phase with the input and swings between GND2 and VCC providing a TTL/CMOS compatible signal without any pull-up resistors. An on-chip noise filter helps prevent glitches and data errors at the output, and a pin is provided for synchronizing the output signal to an external system clock.
