Product Details

Description

Features:

Regulates Two Secondary Outputs
Optocoupler Feedback Driver and Second Output Synchronous Driver Controller
True Differential Remote Sensing Regulation
High Switching Frequency: up to 800kHz
Programmable Current Limit
Programmable Soft-Start and Power Good
Automatic Frequency Synchronization
Available in Thermally Enhanced 28-Lead TSSOP

Application

48V Input Isolated DC/DC Converters
Multiple Output Power Supplies
Offline Converters
DC/DC Power Modules

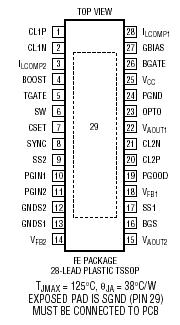

Pinout

Connection Diagram

Specifications

VCC Supply Voltage .................................................. 26V
BOOST Pin Voltage with Respect to SW Pin ............ 10V
BOOST Pin Voltage with Respect to GND Pin .......... 35V
SYNC Pin Voltage (Note 2) ..................................... 30V
GNDS1 Pin Voltage ................................................... 1V
GNDS2 Pin Voltage ................................................... 1V
Operating Junction Temperature Range
LT3804E (Note 3) ..............................40°C to 125°C
Storage Temperature Range ..............65°C to 150°C
Lead Temperature (Soldering, 10 sec).................. 300°C
