LT1816

Total Supply Voltage (V + to V ) .............................. 12.6V
Differential Input Voltage
(Transient Only, Note 2) .............................................. ±6V
Input Voltage .............................................................. ±VS
Output Short-Circuit Duration (Note 3) ............... Indefinite
Operating Temperature Range ................40°C to 85°C
Specified Temperature Range (Note 8) ... 40°C to 85°C
Maximum Junction Temperature .............................. 150°C
(DD Package) .......................................................... 125°C
Storage Temperature Range ..................65°C to 150°C
(DD Package) ......................................... 65°C to 125°C
Lead Temperature (Soldering, 10 sec).................. 300°C

The LT^®1815/LT1816/LT1817 are low power, high speed, very high slew rate operational amplifiers with excellent DC performance. The LT1815/LT1816/LT1817 feature higher bandwidth and slew rate, much lower input offset voltage and lower noise and distortion than other devices with comparable supply current. A programmable current option (LT1815 and LT1816A) allows power savings and flexibility by operating at reduced supply current and speed. The circuit topology is a voltage feedback amplifier with the slewing characteristics of a current feedback amplifier.

The output drives a 100 load to ±3.8V with ±5V supplies. On a single 5V supply, the output swings from 1V to 4V with a 100 load connected to 2.5V. Harmonic distortion is 70dB for a 5MHz, 2V_P-P output driving a 100 load in a gain of 1.

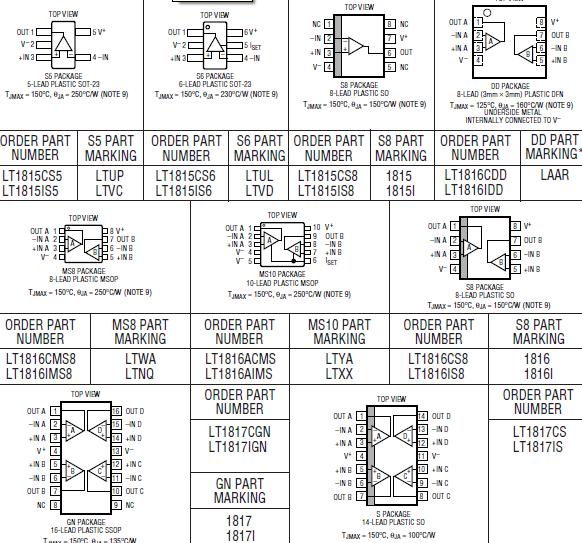

The LT1815/LT1816/LT1817 are manufactured on Linear Technology's advanced low voltage complementary bipolar process and are available in a variety of SOT-23, SO, MSOP, SSOP and leadless DFN packages.
