LT1537

Supply Voltage (VCC) ........................................... 5.5V
V+ ...................................................................... 13.2V
V (Note 7) .....................................................  6.5V
Input Voltage
Driver ........................................................... V to V+
Receiver ...............................................  25V to 25V
Output Voltage
Driver ....................................... V+  25V to V + 25V
Receiver ....................................  0.3V to VCC + 0.3V
Short Circuit Duration
V+ ................................................................... 30 sec
V ................................................................... 30 sec
Driver Output .............................................. Indefinite
Receiver Output .......................................... Indefinite
Operating Temperature Range
LT1537C ................................................. 0°C to 70°C
Storage Temperature Range ...........  65°C to 150°C
Lead Temperature (Soldering, 10 sec)............... 300°C


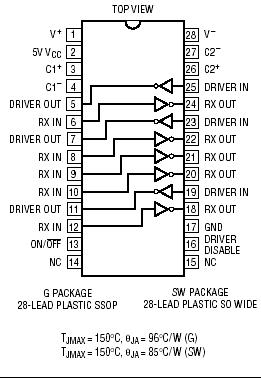

Description

The LT®1537 is a three-driver, five-receiver RS232 transceiver, pin compatible with the LT1137A, offering performance improvements and two shutdown modes. The LT1537's charge pump is designed for extended compliance and can deliver over 35mA of load current. Supply current is typically 8mA, competitive with similar CMOS devices. An advanced driver output stage operates up to 250kbaud while driving heavy capacitive loads.

The LT1537 is fully compliant with all RS232 specifications. Special bipolar construction techniques protect the drivers and receivers beyond the fault conditions stipulated for RS232. Driver outputs and receiver inputs can be shorted to ±25V without damaging the device or the power supply generator.

In addition, the RS232 I/O pins are resilient to multiple ±5kV ESD strikes. The transceiver has two shutdown modes. One mode disables the drivers and the charge pump, the other shuts down all circuitry. While shut down, the drivers and receivers assume high impedance output states.
