LT1173

Features: · Operates at Supply Voltages From 2.0V to 30V·Consumes Only 110mA Supply Current· Works in Step-Up or Step-Down Mode· Only Three External Components Required· Low Battery Detector Comparator On-Chip· User-Adjustable Current Limit· Internal 1A Power Switch· Fixed or Adjustable Output Vol...

product image

LT1173 Picture
See larger image
SeekIC No. : 004400398 Detail

LT1173: Features: · Operates at Supply Voltages From 2.0V to 30V·Consumes Only 110mA Supply Current· Works in Step-Up or Step-Down Mode· Only Three External Components Required· Low Battery Detector Compara...

LT1173 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LT1173
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operates at Supply Voltages From 2.0V to 30V
·Consumes Only 110mA Supply Current
· Works in Step-Up or Step-Down Mode
· Only Three External Components Required
· Low Battery Detector Comparator On-Chip
· User-Adjustable Current Limit
· Internal 1A Power Switch
· Fixed or Adjustable Output Voltage Versions
· Space Saving 8-Pin MiniDIP or SO8 Package


Application

· Flash Memory Vpp Generators
· 3V to 5V, 5V to 12V Converters
· 9V to 5V, 12V to 5V Converters
· LCD Bias Generators
· Peripherals and Add-On Cards
· Battery Backup Supplies
·Laptop and Palmtop Computers
· Cellular Telephones
·Portable Instruments


Pinout

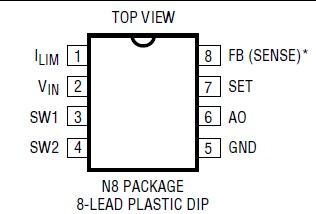

Connection Diagram


Specifications

Supply Voltage (VIN) ...............................................36V
SW1 Pin Voltage (VSW1) .........................................50V
SW2 Pin Voltage (VSW2) .......................... 0.5V to VIN
Feedback Pin Voltage (LT1173) ................................ 5V
Sense Pin Voltage (LT1173, -5, -12) .......................36V
Maximum Power Dissipation ............................. 500mW
Maximum Switch Current .......................................1.5A
Operating Temperature Range ..................... 0 to 70
Storage Temperature Range ..................65 to 150
Lead Temperature, (Soldering, 10 sec.)................ 300


Description

The LT1173 is a versatile micropower DC-DC converter. The device requires only three external components to deliver a fixed output of 5V or 12V. Supply voltage ranges from 2.0V to 12V in step-up mode and to 30V in step-down mode. The LT1173 functions equally well in step-up, stepdown or inverting applications.

The LT1173 consumes just 110mA supply current at standby, making it ideal for applications where low quiescent current is important. The device can deliver 5V at 80mA from a 3V input in step-up mode or 5V at 200mA from a 12V input in step-down mode.

Switch current limit can be programmed with a single resistor. An auxiliary gain block can be configured as a low battery detector, linear post regulator, under voltage lockout circuit or error amplifier.

For input sources of less than 2V, use the LT1073.
