Features: 60A Max Supply Current
40V Max Offset Voltage
350pA Max Offset Current
0.5VP-P 0.1Hz to 10Hz Voltage Noise
2.5pAP-P 0.1Hz to 10Hz Current Noise
O.4V/°C Offset Voltage Drift
250kHz Gain-Bandwidth Product
0.12V/s Slew Rate
Single Supply Operation
Input Voltage Range Includes Ground
Output Swings to Ground while Sinking Current
No Pull-Down Resistors are Needed
Output Sources and Sinks 5mA Load CurrentApplication Replaces OP-07, OP-77, AD707, LT1001, LT1O12 at 10 to 60 Times Lower Power
Battery or Solar Powered Systems
4mA to 2OmA Current Loops
Two Terminal Current Source
Megaohm Source Resistance Difference Amplifier

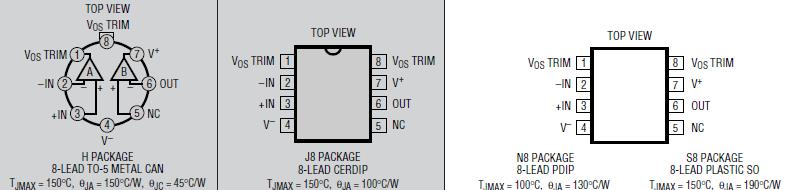

Pinout
SpecificationsSupply Voltage ................................................... ±22V
Differential Input Voltage ................................... ±30V
Input Voltage ........... Equal to Positive Supply Voltage
Input Voltage ........5V Below Negative Supply Voltage
Output Short-Circuit Duration ...................... Indefinite
Operating Temperature Range
LT1077AM/LT1077M (OBSOLETE).... 55°C to 125°C
LT1077AI/LT1077I........................... 40°C to 85°C
LT1077AC/LT1077C/LT1077S8 .............. 0°C to 70°C
Storage Temperature Range ......... 65°C to 150°C
Lead Temperature (Soldering, 10 sec).............. 300°C
DescriptionThe LT®1077 is a micropower precision operational amplifier optimized for single supply operation at 5V. In addition, ±15V specifications are provided.
Micropower performance of competing devices is achieved at the expense of seriously degrading precision, noise, speed, and output drive specifications. The LT1077 reduces supply current without sacrificing other parameters. The offset voltage achieved is the lowest of any micropower op amp. Offset current, voltage and current noise, slew rate and gain-bandwidth product are all two to ten times better than on previous micropowerop amps.
The 1/f corner of the voltage noise spectrum is at 0.7Hz. This results in low frequency (0.1Hz to 10Hz) noise performance which can only be found on devices with an order of magnitude higher supply current.
The LT1077 is completely plug-in compatible (including nulling) with all industry standard precision op amps. Thus, it can replace these precision op amps in many applications without sacrificing performance, yet withsignificant power savings.
The LT1077 can be operated from one lithium cell or two Ni-Cad batteries. The input range goes below ground. The all-NPN output stage swings to ground while sinking current-no pull-down resistors are needed.
For dual and quad op amps with similar specifications please see the LT1078/LT1079 datasheet.
