Features: Eight amplifier channels in one package
Outputs from 298 V to +160 V per channel
Programmable output current limit (100 µA to 500 µA)
Variable voltage gain set by external resistors
ApplicationOptical crosspoint switches
Optical microelectromechanical systems (MEMS) components
PinoutSpecificationsStresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of the data sheet. Exposure to absolute maximum ratings for extended periods can adversely affect device reliability.
Parameter |
Min |
Typ |
Max |
Unit |
Power Supply: VHN VHP VLP VHP - VHN |
0 VLP 4.5 0 |
-180.0 VLP 12.0 195.0 |
-300.0 160.0 20.0 300.0 |
V V V V |
Operating Temperature |
-40 |
25 |
85 |
|
Storage Temperature |
-65 |
25 |
159 |
oC |
Ambient Temperature |
- |
- |
300 |
|
DescriptionThe LSP2908 eight-channel, high-voltage (HV) driver is targeted for microoptomechanical systems. Each device contains eight high-voltage amplifiers with an output voltage range of 298 V to +160 V on the condition that |VHP VHN| 300 V. Voltage gain is set by external resistors. Each amplifier can output up to 500 µA, ideal for deflection and control of optical MEMS mirrors. Output current limit is programmed by an external resistor. Additionally, careful attention is paid to minimizing offset drift over temperature.
The LSP2908 requires one negative high-voltage
power supply (VHN) and one positive low-voltage
power supply (VLP). For positive output voltage appli-
cations, one positive high-voltage power supply
(VHP) is required. Corresponding to the eight chan-
nels are the eight inverting input pins, INx
(x = 1, 2, . . . , 8), and the corresponding eight output

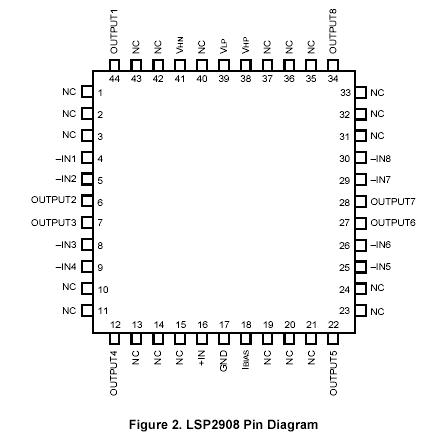

pins, OUTPUTx (x = 1, 2, . . . , 8). Figure 1 is the
internal functional block diagram.
+IN is the noninverting input for all eight amplifiers.
All the amplifiers share the same noninverting input.
+IN should be connected to GND. The IBIAS pin will
set the current limit ((100 µA to 500 µA) ± 20%) for
the amplifiers by connecting it to an external resistor
Rib. The LSP2908 is available in a leaded surface-
mount 44-pin MQFP package.
