Product Details

Description

Features:

Wide-Band IF filter for W-CDMA.
Because it is leadless type, automatic mounting is possible.
Excellent phase characteristics.
Balance connection type of input and output is available.

Pinout

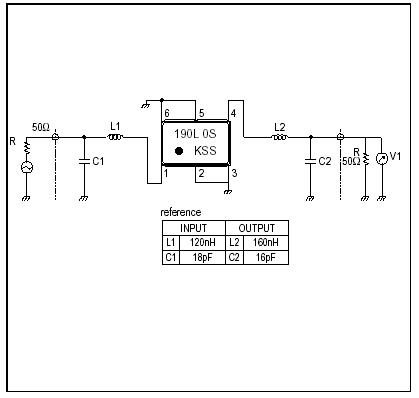

Connection Diagram

Specifications

Item	Unit	Conditions	Specifications
Nominal Frequency	MHz		190.0
Operating Temperature Range	.C	10~+60
Storage Temperature Range	.C	30~+70
Insertion Loss	dB	Typical	7.0 MAX.
Guaranteed Attenuation	dB	Fo±5MHz	35 MIN.
Guaranteed Attenuation	dB	Fo±10MHz	40 MIN.
Terminating Impedance	Ω		35 MIN.
Ripple	dB	Fo±400kHz	40 MIN..
Pass Bandwidth	°C	1dB	±2.5 MIN.
