LS7561

Features:

• Open loop motor control
• Tachometer output for closed loop motor control
• Error Amplifier and PWM Speed Comparator with full accessibility
• High noise immunity Schmitt Triggers on Sensor inputs
• 5.5V Reference Supply for external sensors
• Cycle-by-cycle current sensing
• Static, or current limited dynamic, motor braking
• Output enable delay on speed direction reversal
• Enable input with fault sensing capability
• Fault Indicator output
• 60°/300° or 120°/240° electrical sensor spacing selection
• Selectable PWM of top and bottom drivers or bottom drivers only
• CMOS compatible motor outputs with drive capability
• Selectable top driver polarity
• Low power dissipation
• +10V to +18V operation (V_DD-V_ss)
• LS7560, LS7561 (DIP); LS7560-SD, LS7561-SD (Skinny DIP); LS7560-S, LS7561-S (SOIC); LS7560-TS, LS7561-TS (TSSOP) See Figure 1

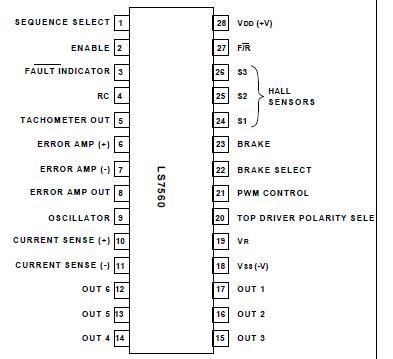

Pinout




Specifications

PARAMETER	SYMBOL	VALUE	UNIT
Storage Temperature	VDD	20	V
Voltage at any input	VIN	Vss - 0.3 to VR	V
Operating Temperature	TA	-25 to +85
Storage Temperature	TSTG	-65 to +150
Output Drive Sink/Source Current	Io	75	mA
VR Output Source Current	IR	30	mA

Description

The LS7560/LS7561 are CMOS integrated circuits designed to control three or four phase brushless DC motors in a closed or open loop configuration. The IC consists of a decoder which provides proper commutation sequencing, a frequency-topulse width converter and error amplifier for closed loop motor speed control, a PWM comparator and sawtooth oscillator for external driver power control and a 5.5V reference generator for supplying power to motor sensors. Also included is Fault detection and indication, overcurrent sensing, dynamic motor braking, forward/reverse input, sensor spacing selections and an enable input control. The overcurrent sense condition will disable all output drivers when using the LS7560 and only the bottom drivers when using the LS7561.

The  LS7560/LS7561  IC operates from 10V to 18V and provides CMOS compatible outputs for interfacing with external power devices.

Operating below 10V will activate a Fault Indication Output and disable all Output Drivers.
