LS75-36: POWER SUPPLY 36V 2.1A SGL OUTPUT

LS75-36 Data Sheet

US $ 14.19~14.19 / Piece | Get Latest Price

Part Number:: LS75-36
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1

Unit Price
$14.19

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

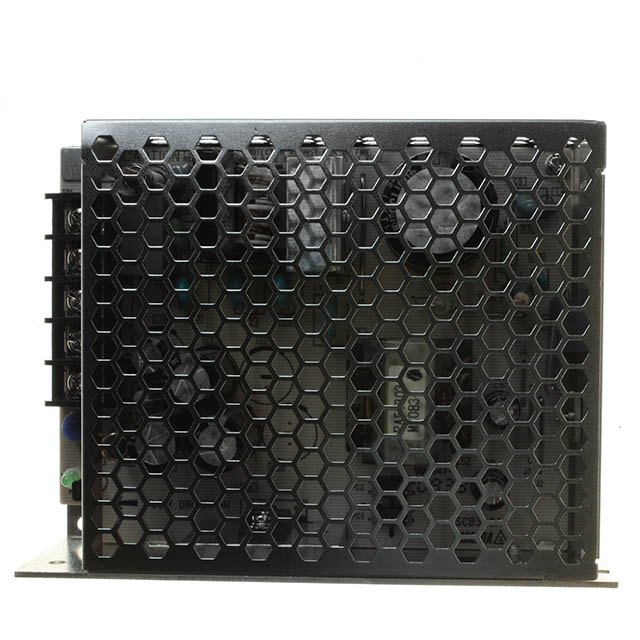

LS75-12 evaluate
US $14.19 - 14.19 / Piece

POWER SUPPLY 12V 6A SGL OUTPUT

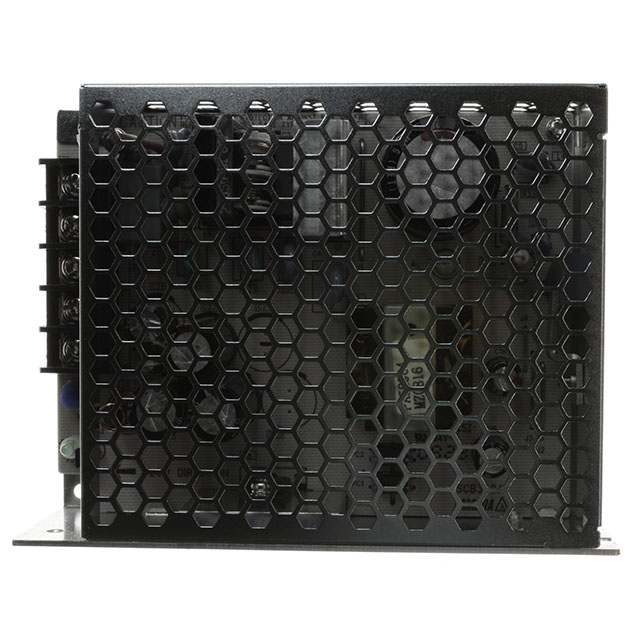

LS75-15 evaluate
US $14.19 - 14.19 / Piece

Linear and Switching Power Supplies 75W 15V 5A AC-DC 115-230VAC

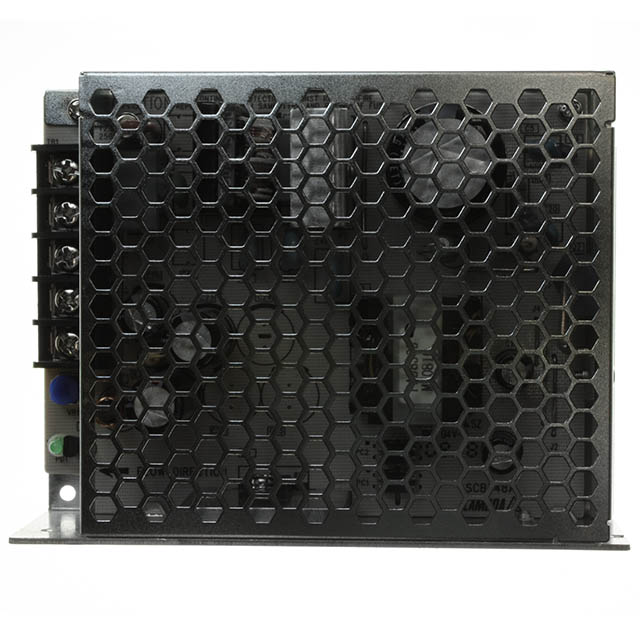

LS75-24 evaluate
US $14.19 - 14.19 / Piece

Linear and Switching Power Supplies 77W 24V 3.2A AC-DC 115-230VAC

Product Details

Quick Details

Number of Converters :	3	Series:	LS
Manufacturer:	TDK-Lambda Americas Inc	Type:	Standard Product
Number of Outputs:	1	Voltage - Output:	36V
Voltage - Input:	88 ~ 264VAC	Output - 1 @ Current (Max):	36 VDC @ 2.1A
Output - 2 @ Current (Max):	-	Output - 3 @ Current (Max):	-
Output - 4 @ Current (Max):	-	Power (Watts):	75W
Power Supply Type:	Switching (Closed Frame)	Applications:	Commercial
Mounting Type:	Chassis Mount	Size / Dimension:	5.10" L x 3.80" W x 1.50" H (129.5mm x 96.5mm x 38.1mm)
Operating Temperature:	-25°C ~ 70°C

Description

Type: Standard Product
Number of Outputs: 1
Output - 2 @ Current (Max): -
Output - 3 @ Current (Max): -
Output - 4 @ Current (Max): -
Applications: Commercial
Mounting Type: Chassis Mount
Voltage - Input: 88 ~ 264VAC
Power Supply Type: Switching (Closed Frame)
Operating Temperature: -25°C ~ 70°C
Efficiency: 86%
Voltage - Output: 36V
Series: LS
Manufacturer: TDK-Lambda Americas Inc
Power (Watts): 75W
Size / Dimension: 5.10" L x 3.80" W x 1.50" H (129.5mm x 96.5mm x 38.1mm)
Output - 1 @ Current (Max): 36 VDC @ 2.1A

Parameters:

Technical/Catalog Information	LS75-36
Vendor	TDK-LAMBDA AMERICAS INC
Category	Power Supplies
Number of Outputs	1
Power (Watts)	75.6W
Voltage - Output	36V
Voltage - Input	88 ~ 264VAC
Power Supply Type	Switching (Closed Frame)
1st Output	36 VDC @ 2.1A
2nd Output	-
3rd Output	-
4th Output	-
Mounting Type	Chassis Mount
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LS75 36 LS7536 285 1829 ND 2851829ND 285-1829
