LR1084

Features:

Low Dropout Voltage: 1.3V Typically at 5A
Current Limiting and Thermal Protection
Output Current: 5A
Current Limit: 6.5A
Operating Junction Temperature Range: 0 to 125
Line Regulation: 0.015% (Typical)
Load Regulation: 0.2% (Typical)




Application

High Efficiency Linear Regulators
Battery Chargers
Post Regulation for Switching Supply
Microprocessor Supply
Desktop PCs, RISC and Embedded Processors' Supply

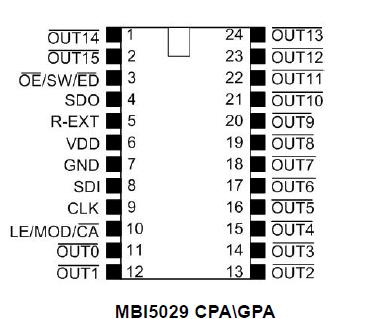

Pinout






Specifications

Parameter	Symbol	Min	Max	Unit
Operating Junction Temperature Range	TJ		150
Storage Temperature Range	TS	-65	150
Lead Temperature (Soldering, 10 sec.)	TLEAD		300
ESD (Human Body Model)	ESD		2000	V

Description

The LR1084 is a series of low dropout positive voltage regulators with a maximum dropout of 1.5V at 5A of load current.

The series features on-chip thermal limiting which provides protection against any combination of overload and ambient temperatures that would create excessive junction temperatures. It also includes a trimmed bandgap reference and a current limiting circuit.

The LR1084 is available in 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0Vversions. The fixed versions integrate the adjust resistors. It is also available in an adjustable version which can set the output voltage with two external resistors.

The LR1084 series is available in standard packages of TO-263-2L, TO-263-3L, TO-220 and TO-252.
