LPC47N252

Features:

` 3.3V Operation with 5V Tolerant Buffers
` ACPI 1.1, PC99/PC2001 Compliant
` LPC Interface with Clock Run Support
− Serial IRQ Interface Compatible with Serialized IRQ Support for PCI Systems
− 15 Direct IRQs
− Four 8-Bit DMA Channels
− ACPI SCI Interface
− nSMI
− Shadowed write only registers
` Internal 64K Flash ROM
− Programmed From Direct Parallel Interface, 8051, or LPC Host
− 2k-Byte Lockable Boot Block
− Can be Programmed Without 8051 Intervention
` Three Power Planes
− Low Standby Current in Sleep Mode
− Intelligent Auto Power Management for Super I/O
` ACPI Embedded Controller Interface
` Configuration Register Set Compatible with ISA Plug-and-Play Standard (Version 1.0a)
` High-Performance Embedded 8051 Keyboard and System Controller
− Provides System Power Management
− System Watch Dog Timer (WDT)
− 8042 Style Host Interface
− Supports Interrupt and Polling Access
− 256 Bytes Data RAM
− On-Chip Memory-Mapped Control Registers
− Access to RTC and CMOS Registers
− Up to 16x8 Keyboard Scan Matrix
− Two 16 Bit Timer/Counters
− Integrated Full-Duplex Serial Port Interface
− Eleven 8051 Interrupt Sources
− Thirty-Two 8-Bit, Host/8051 Mailbox Registers
− Thirty-six Maskable Hardware Wake-Up Events
− Fast GATEA20
− Fast CPU_RESET
− Multiple Clock Sources and Operating Frequencies
− IDLE and SLEEP Modes
− Fail-Safe Ring Oscillator

Advanced Infrared Communications Controller (IrCC 2.0)
− IrDA V1.2 (4Mbps), HPSIR, ASKIR, Consumer IR Support
− Two IR Ports
− Relocatable Base I/O Address
` Real-Time Clock
− MC146818 and DS1287 Compatible
− 256 Bytes of Battery Backed CMOS in Two 128-Byte Banks
− 128 Bytes of CMOS RAM Lockable in 4x32 Byte Blocks
− 12 and 24 Hour Time Format
− Binary and BCD Format
− <2A Standby Current (typ)
` Two 8584-Style ACCESS.Bus Controllers
− 8051 Controlled Logic Allows ACCESS.Bus Master or Slave Operation
− ACCESS.Bus Controllers are Fully Operational on Standby Power
− 2 Sets of Dedicated Pins per ACCESS.Bus Controller
` Four independent Hardware Driven PS/2 Ports
` 83 General Purpose I/O Pins
− 36 Maskable Hardware Wake-Event Capable
− 18 Programmable Open-Drain/Push-Pull Outputs
− 16 Mapped into 8051 SFR Space
− 24 LPC/8051-Addressable
` Three Programmable Pulse-Width Modulator Outputs
− Independent Clock Rates
− 6 Bit Duty Cycle Granularity
− VCC1 and VCC2 operation mode
` Dual Fan Tachometer Inputs

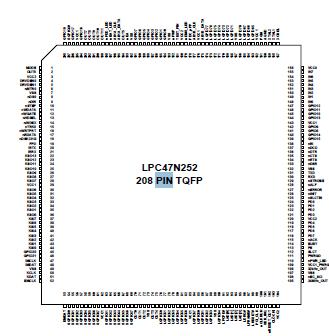

Pinout




Description

`The LPC47N252 is a 208-pin 3.3V LPC-based ACPI 1.1 and PC99/PC2001 compliant Notebook I/O Controller with
Fast Infrared for mobile applications.

`The LPC47N252 incorporates a high-performance 8051-based keyboard controller; a 64k byte internal Flash ROM,
four PS/2 ports; a real-time clock; SMSC's true CMOS 765B floppy disk controller with advanced digital data
separator and 16-byte data FIFO; an NS16C550A-compatible UART, SMSC's advanced Infrared Communications
Controller (IrCC 2.0) with a UART and a Synchronous Communications Engine to provide IrDA v1.1 (Fast IR)
capabilities; one Multi-Mode parallel port with ChiProtect circuitry plus EPP and ECP support; two 8584-style Access
Bus controllers with two Sets of Dedicated Pins per ACCESS.Bus Controller; a Serial IRQ peripheral agent interface;
an ACPI Embedded Controller Interface; General Purpose I/O pins including eight pass through ports; three
independently programmable pulse width modulators; two-floppy direct drive support; and maskable hardware wakeup
events. The true CMOS 765B core provides 100% compatibility with IBM PC/XT and PC/AT architectures in
addition to providing data overflow and underflow protection. The SMSC advanced digital data separator incorporates
SMSC's patented data separator technology, allowing for ease of testing and use. The parallel port is compatible
with IBM PC/AT architecture, as well as EPP and ECP. The 8051 controller can also take control of the parallel port
interface to provide remote diagnostics or "Flashing" of the Flash memory.

`The LPC47N252 has three separate power planes to provide "instant on" and system power management  functions.

`Additionally, the LPC47N252 incorporates sophisticated power control circuitry (PCC). The PCC supports multiple
low power down modes. Wake-up events and ACPI-related functions are supported through the SCI Interface.
The LPC47N252's configuration register set is compatible with the ISA Plug-and-Play Standard (Version 1.0a) and
provides the functionality to support Windows '95.The legacy host Super I/O Configuration and Alternate Super I/O
Configuration decode ranges comply with the Low Pin Count Interface Specification, Revision 1.0. Through internal
configuration registers, each of the LPC47N252's logical device's I/O address, DMA channel and IRQ channel may
be programmed. There are 480 I/O address location options, 15 IRQ options, and four DMA channel options for each
logical device.

`The LPC47N252 does not require any external filter components and is, therefore, easy to use and offers lower
system cost and reduced board area. The LPC47N252 is software and register compatible with SMSC's proprietary
82077AA core.
