LP61L1008

Features:

· Single 3.3V ± 10% power supply
· Access times: 12/15 ns (max.)
· Current: Operating: 180mA (max.) Standby: 5mA (max.)
· Full static operation, no clock or refreshing required
· All inputs and outputs are directly TTL compatible
· Center Power/Ground Pin Configuration
· Common I/O using three-state output
· Output enable and two chip enable inputs for easy application
· Data retention voltage: 2.0V (min.)
· Available in 32-pin SOJ 300 mil and 32-pin sTSOP packages

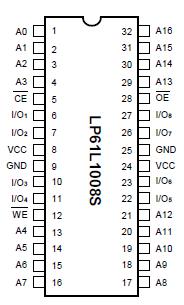

Pinout




Specifications

VCC to GND .............................................. -0.5V to +4.6V
IN, IN/OUT Volt to GND .....................-0.5V to VCC +0.5V
Operating Temperature, Topr ...................... 0 to +70
Storage Temperature, Tstg..................... -55 to +125
Temperature Under Bias, Tbias................ -10 to +85
Power Dissipation, Pt................................................1.0W
Soldering Temp. & Time .............................260°C, 10 sec


Description

The LP61L1008 is a high speed 1,048,576-bit static random access memory organized as 131,072 words by 8 bits and operates on a single 3.3V power supply.

Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.

The chip enable input is provided for POWER-DOWN and device enable and an output enable input is included for easy interfacing.

Data retention is guaranteed at a power supply voltage as low as 2.0V.
